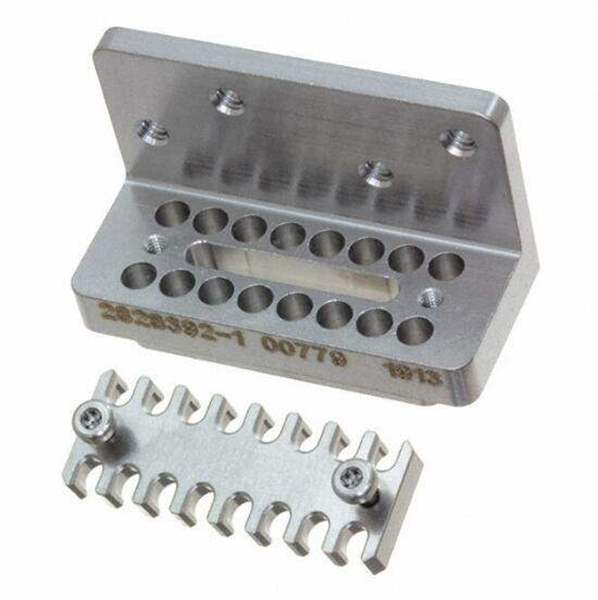

2828392-1

Part No 2828392-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Accessories
Description DAUGHTERCARD, FULL MODULE, ST ST
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity Aerospace, Defense and Marine
Category Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Accessories
Package Box
Product Status Active
Accessory Type Housing Module
Body Material Stainless Steel
Features 16 Positions
Color Silver
Win Source Part Number WS1207421-2828392-1
Ultra Librarian 3D Model Ultra Librarian 2828392-1 CAD Model

Description

The NanoRF Socket contact consists of a housing subassembly with outer contact fingers at the mating interface and a center contact with mating pin. The NanoRF pin contact consists of a solid tapered outer contact at the mating interface and a socket center contact that is inside the housing. The pin contact is packaged with a spring that must be assembled onto the cable prior to termination. Both contacts have a captured center contact with a socket in the backend that accepts the center conductor of the coaxial cable. The outer conductor or braid of the cable is soldered into the housing assembly.
