Same model may have multiple batches, images only for reference.

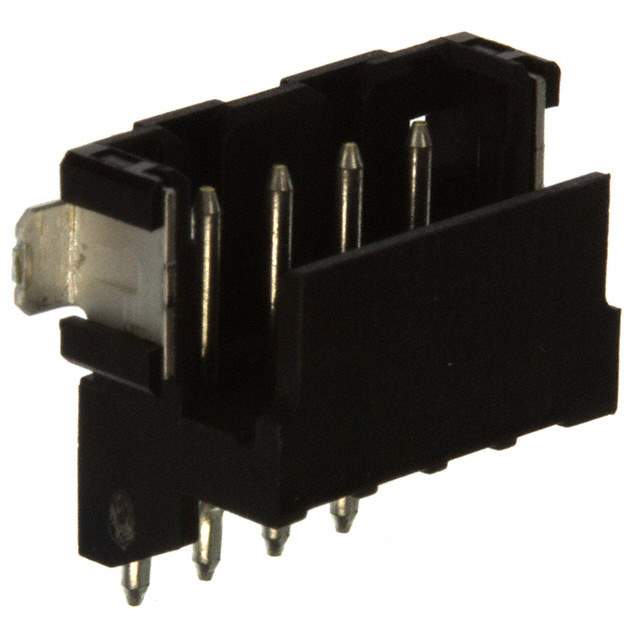

292173-4 Real Image
Same model may have multiple batches, images only for reference.

292173-4

Part No 292173-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 2MM / Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series CT
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Insulation Height 0.228" (5.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Board Guide, Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292173
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2921734,A98626DKR,A98626CT,A98626TR,-292173-4-SI,2266-292173-4
Standard Package 500
Win Source Part Number 1189888-292173-4
Ultra Librarian 3D Model Ultra Librarian 292173-4 CAD Model

Description

The CT series header connector from TE Connectivity is a male pin connector that is designed to provide reliable and secure connections.

  • Series: CT
  • Connector Type: Header, Male Pins
  • Packaging: Tape and Reel
  • Quantity per Reel: 500
  • Pitch (Mating): 0.079" (2.00mm)
  • Contact Finish (Mating): Tin
  • Features: Board Guide, Solder Retention, Detent Lock
  • Fastening Type: Detent Lock
  • Application: General Purpose
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled
  • Shrouding: 4 Walls
  • Mounting Type: Surface Mount, Right Angle
