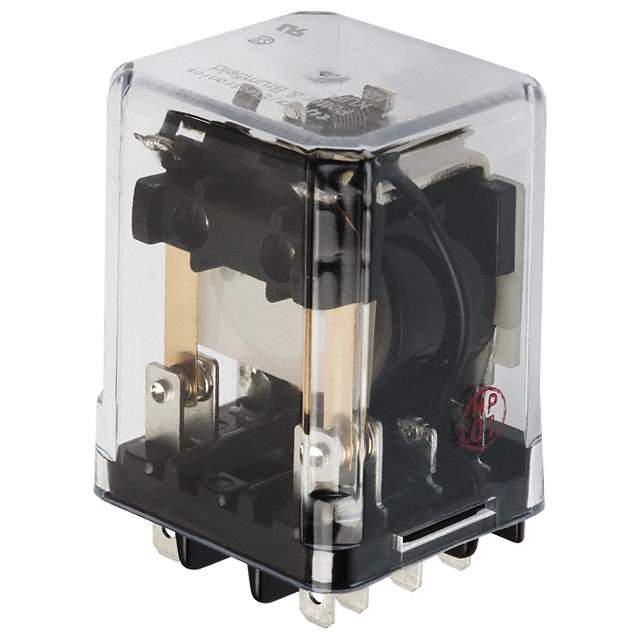

Same model may have multiple batches, images only for reference.

3-1393118-4

Name: 3-1393118-4
Brand: TE Connectivity
SKU: 1054837
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	3-1393118-4
Manufacturer	TE Connectivity
Catalog	Signal Relays, Up to 2 Amps
Description	Electromechanical Relay 24VDC 472Ohm 10A 3PDT(38.89x35.71x55.55)mm Socket Industrial Relay
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	CSA, UL
Coil Current	51 mA
Coil Power	1.25 W
Coil Resistance	472 Ω
Coil Type	Non-Latching
Coil Voltage (DC)	24 V
Contact Current Rating	10 A
Contact Material	Cadmium, Silver
Contact Voltage Rating (AC)	240 V
Depth	35.71 mm
ELV	Non-Compliant
Height	50 mm
Lead Free	Not Applicable
Length	38.9 mm
Max Current Rating	10 A
Maximum Operating Temperature	70 °C
Max Voltage Rating (AC)	240 V
Max Voltage Rating (DC)	32 V
Min Operating Temperature	-45 °C
Mount	Socket, Socketable
Number of Pins	11
Number of Poles	3
Operate Time	15 ms
Packaging	Bulk
Power Rating	1.25 W
Radiation Hardening	No
Relay Type	General Purpose
Release Time	10 ms
RoHS	Compliant
Termination	Plug, Solder
Throw Configuration	3PDT
Weight	84.708375 g
Width	35.687 mm
Win Source Part Number	1054837-3-1393118-4
Categories	Signal Relays,Up to 2 Amps
Manufacturer	TE Connectivity
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 3-1393118-4 CAD Model

Alternative Products

Description

The TE Connectivity 1054837-3-1393118-4 is a general purpose relay that comes in bulk packaging.

Termination: plug, solder
Contact Material: cadmium, silver
Length: 38.9 mm
Height: 50 mm
Coil Resistance: 472 Ω
Coil Current: 51 mA
Contact Current Rating: 10 A
Operate Time: 15 ms
Relay Type: non-latching
Release Time: 10 ms
Coil Power: 1.25 W
Number of Poles: 3
Weight: 84.708375 g
Power Rating: 1.25 W
Number of Pins: 11
Width: 35.687 mm
