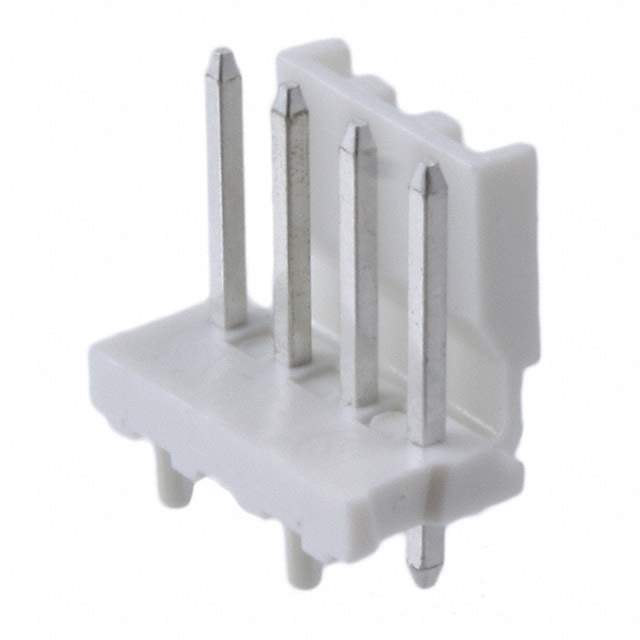

Same model may have multiple batches, images only for reference.

3-644615-4

Name: 3-644615-4
Brand: TE Connectivity
SKU: 1351678
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	3-644615-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 3.96MM / Connector Header Through Hole 4 position 0.156" (3.96mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	MTA-156
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 1 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.450" (11.43mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.700" (17.78mm)
Insulation Height	0.545" (13.84mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	150.0µin (3.81µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Glass Filled
Features	Board Guide
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	600VAC
Contact Finish Thickness - Post	150.0µin (3.81µm)
Applications	General Purpose, Industrial
Base Product Number	644615
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1351678-3-644615-4
Ultra Librarian 3D Model	Ultra Librarian 3-644615-4 CAD Model

Alternative Products

Description

The MTA-156 is a 4-position header connector manufactured by TE Connectivity AMP Connectors.

Number of Positions: 4
Board Guide: Yes
Positions Loaded: All
Pitch - Mating: 0.156 inches (3.96mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 150.0μin (3.81μm)
Insulation Color: Natural
Mounting Type: Through Hole
Shrouding: Shrouded-1 Wall
Contact Shape: Square
Temperature Range: -55°C ~ 105°C
Category: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Supply and Demand Status: Balanced
