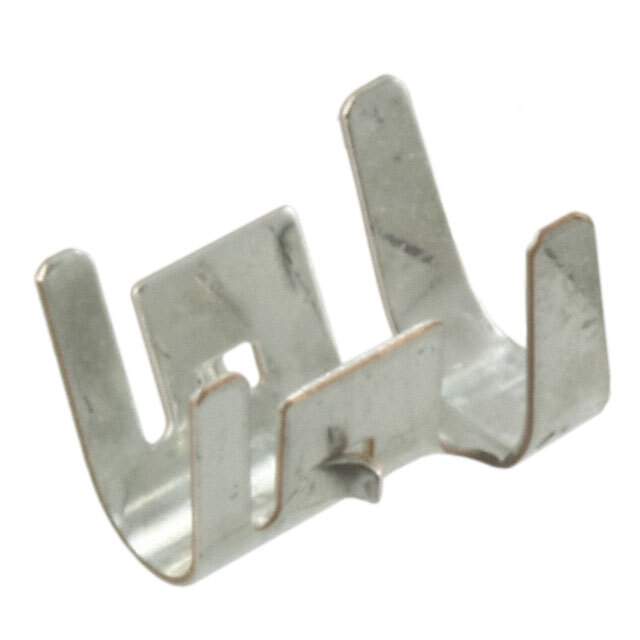

3-794013-1 Real Image
Same model may have multiple batches, images only for reference.

3-794013-1

Part No 3-794013-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN TERM WTB 12AWG TIN  /  WTB Tin Terminal Connector 12 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Wire to Board Connectors
Mfr TE Connectivity AMP Connectors
Series Amp-In
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Through Board
Hole Diameter 0.125" (3.18mm)
Insulation Diameter 0.090" ~ 0.150" (2.29mm ~ 3.81mm)
Length - Overall 0.295" (7.49mm)
Wire Gauge 12 AWG
Contact Material Phosphor Bronze
Contact Finish Tin
Base Product Number 794013
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A100550CT,37940131,3-794013-1-ND,-3-794013-1-SI,A100550TR
Standard Package 3,000
Win Source Part Number 1000947-3-794013-1
Ultra Librarian 3D Model Ultra Librarian 3-794013-1 CAD Model

Description

The 1000947-3-794013-1 is a wire to board connector from TE Connectivity AMP Connectors that is suitable for 12 AWG wire gauge.

  • Wire Gauge: 12 AWG
  • Contact Finish: Tin
  • Contact Material: Phosphor Bronze
  • Overall Length: 0.295 inches (7.49mm)
  • Insulation Diameter: 0.090 inches to 0.150 inches (2.29mm to 3.81mm)
  • Hole Diameter: 0.125 inches (3.18mm)
  • Category: Connector
  • Standard Package: 3000 components
