Same model may have multiple batches, images only for reference.

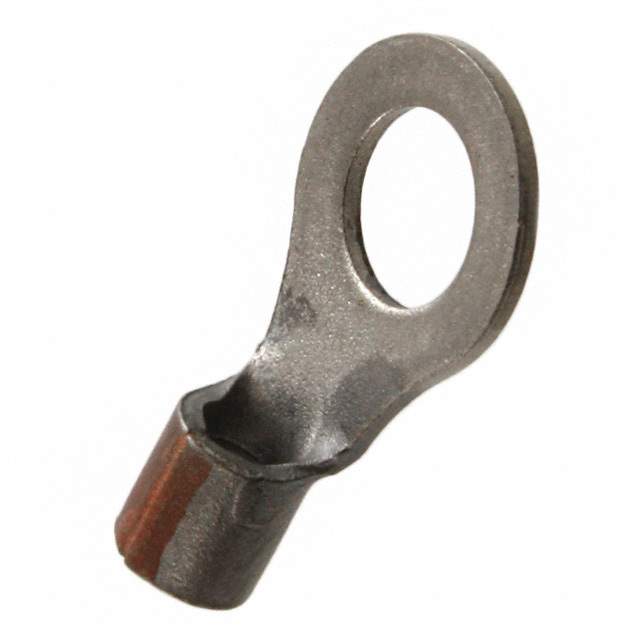

322335 Real Image
Same model may have multiple batches, images only for reference.

322335

Part No 322335
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 14-16AWG #10 / Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.030" (0.76mm)
Width - Outer Edges 0.343" (8.71mm)
Length - Overall 0.636" (16.15mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Non-Insulated
Features Brazed Seam, High Temperature, Serrated Termination
Color Orange
Contact Material Nickel
Base Product Number 3223
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 2266-322335,-322335-CSI,-322335-SI
Standard Package 1,000
Win Source Part Number 1333489-322335
Ultra Librarian 3D Model Ultra Librarian 322335 CAD Model

Description

The TE Connectivity AMP Connectors 3223 is a circular terminal type ring connector with a brazed seam and serrated termination.

  • Termination Feature: serrated
  • Wire Gauge: 14-16 AWG
  • Stud/Tab Size: 10 stud
  • Thickness: 0.030 inches (0.76mm)
  • Width-Outer Edges: 0.343 inches (8.71mm)
  • Length-Overall: 0.636 inches (16.15mm)
  • Mounting: free hanging (in-line)
  • RoHS3 Compliant: yes
  • ECCN: EAR99
