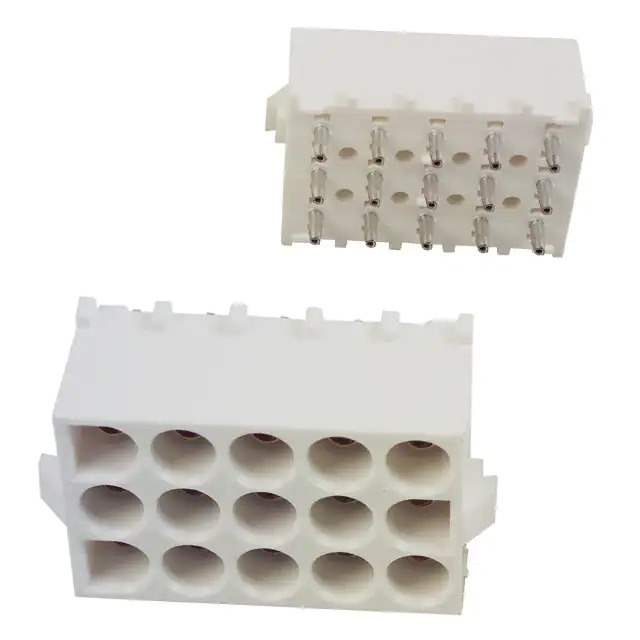

Same model may have multiple batches, images only for reference.

350714-1

Name: 350714-1
Brand: TE Connectivity
SKU: 906641
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	350714-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 15POS 6.35MM / Connector Header Through Hole 15 position 0.250" (6.35mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	Universal MATE-N-LOK
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.250" (6.35mm)
Number of Positions	15
Number of Rows	3
Row Spacing - Mating	0.250" (6.35mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.155" (3.94mm)
Insulation Height	0.550" (13.97mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Applications	General Purpose
Base Product Number	350714
Standard Package	36 pcs
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	906641-350714-1
Ultra Librarian 3D Model	Ultra Librarian 350714-1 CAD Model

Alternative Products

Description

The Universal MATE-N-LOK series of male pin headers is designed for general purpose applications.

Connector Type: Header
Part Number: 906641-350714-1
Positions: 15
Contact Gender: Male Pin
Rows: 3
Loading: All positions loaded
Termination: Solder
Locking: Locking Ramp
Package: Tray
Quantity: 36 pcs
Series: Universal MATE-N-LOK
Insulation Material: Polyamide (PA)
Flammability Rating: UL94 V-0
Mounting: Through Hole
Product Status: Active
Manufacturer: TE Connectivity
