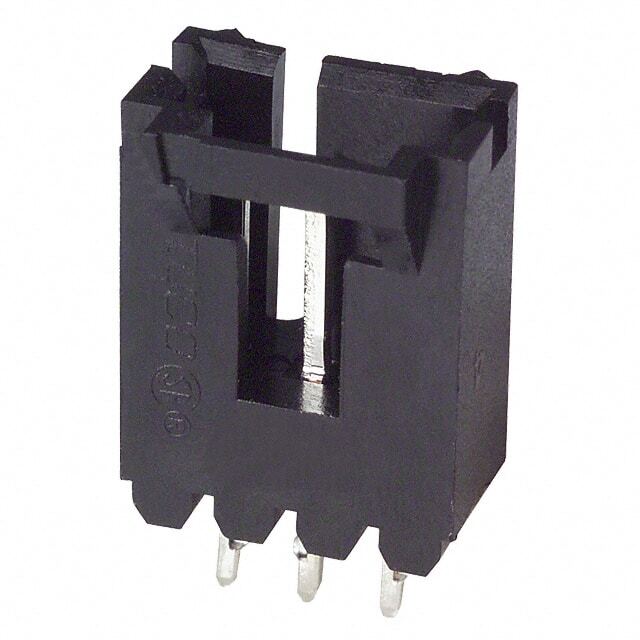

Same model may have multiple batches, images only for reference.
5-103669-2
Same model may have multiple batches, images only for reference.

5-103669-2

Part No 5-103669-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU MTE
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.545" (13.84mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 103669
Standard Package 52 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849106-5-103669-2
Ultra Librarian 3D Model Ultra Librarian 5-103669-2 CAD Model

Description

The TE Connectivity electronic component with Win Source Part Number 849106-5-103669-2 is a rectangular connector header.

  • Series: AMPMODU MTE
  • Positions: 3
  • Connector Type: Male Pin Header
  • Termination: Press-Fit and Solder
  • Keying Slot: Yes
  • Fastening: Latch Holder
  • Applications: Automotive, General Purpose, Medical, and Telecommunications
  • Standard Package: 52 pieces
  • Insulation Material: Thermoplastic
  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0µin
  • Operating Temperature: -65°C to 105°C
  • Current Rating: 3A
  • MSL Level: 1 (unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.69.4040
