Same model may have multiple batches, images only for reference.

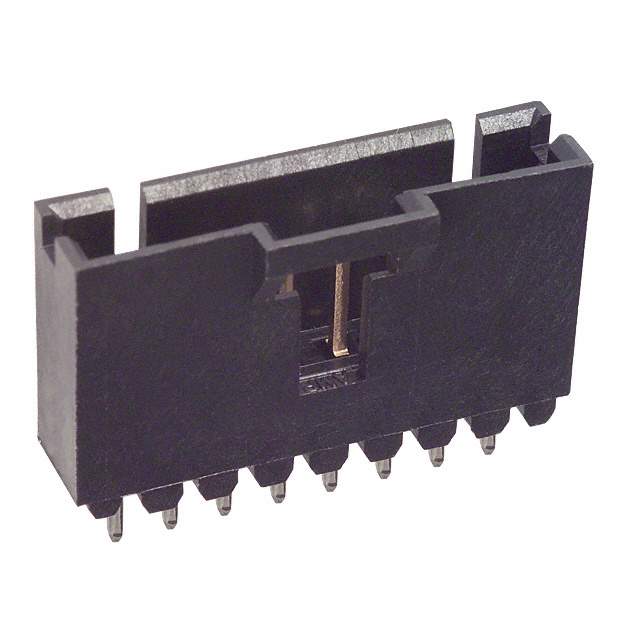

5-104362-7 Real Image
Same model may have multiple batches, images only for reference.

5-104362-7

Part No 5-104362-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description HEADER ASSY, AMPMODU MTE, VERTICAL SINGLE ROW, .100 C/L, .025 SQ POST POLARIZED, WITH LATCHING & HOLD DOWN | CONN HEADER VERT 8POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.550" (13.97mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0μin (0.38μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Manufacturer Pack Quantity 23
MSL Level 1 (Unlimited)
Win Source Part Number 1129030-5-104362-7
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5-104362-7 CAD Model

Description

The TE Connectivity AMP Connectors 1129030-5-104362-7 is a high-quality product designed for use in connectors and interconnects.

  • Connector Type: Header
  • Contact Gender: Male pin
  • Shrouding: Shrouded-4 wall
  • Number of Positions: 8
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold with a thickness of 15.0μin (0.38μm)
  • Contact Finish-Post: Tin with a thickness of 100.0μin (2.54μm)
  • Temperature Range: -65°C to 105°C
  • Contact Length-Mating: 0.230" (5.84mm)
  • Supply and Demand Status: Limited
  • Packaging: Tube
  • Manufacturer Pack Quantity: 23
