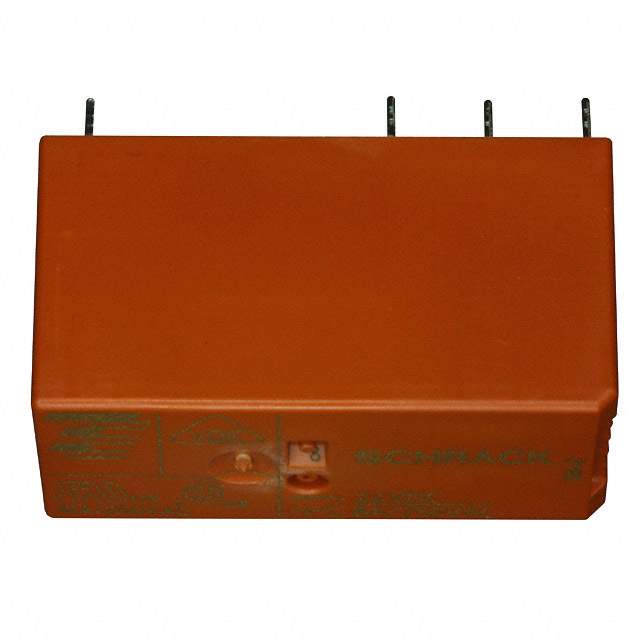

5-1393243-4 Real Image
Same model may have multiple batches, images only for reference.

5-1393243-4

Part No 5-1393243-4
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description 2 Pole Industrial/General Purpose 2 Form C PCB Mount Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 50 mA
Coil Power 600 mW
Coil Resistance 240 Ω
Coil Type Latching, Dual Coil
Coil Voltage (DC) 12 V
Contact Current Rating 8 A
Contact Material Silver
Depth 12.7 mm
Dropout Voltage 8.4 V
ELV Compliant
Height 15.7 mm
Insulation Resistance 10 GΩ
Lead Free Yes
Length 29 mm
Max Current Rating 15 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Pins 9
Operate Time 10 ms
Packaging Carton
Radiation Hardening No
Ratings IP54
REACH SVHC No SVHC
RoHS Compliant
Switching Capacity 2 kW
Switching Current 8 A
Termination Solder
Throw Configuration DPDT
Voltage Rating (AC) 400 V
Weight 10 g
Width 12.7 mm
Win Source Part Number 1039048-5-1393243-4
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 5-1393243-4 CAD Model

Description

This TE Connectivity signal relay is a high-quality component designed to provide reliable and efficient performance.

  • Design: latching, dual coil
  • Coil Resistance: 240 Ω
  • Contact Current Rating: up to 8 A
  • Operate Time: 10 ms
  • Coil Power: 600 mW
  • Mounting: through hole
  • Maximum Voltage Rating: 400 V AC
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Height: 15.7 mm
  • Width: 12.7 mm
  • Depth: 12.7 mm
  • Weight: 10 g
  • Insulation Resistance: 10 GΩ
  • IP Rating: IP54
