Same model may have multiple batches, images only for reference.

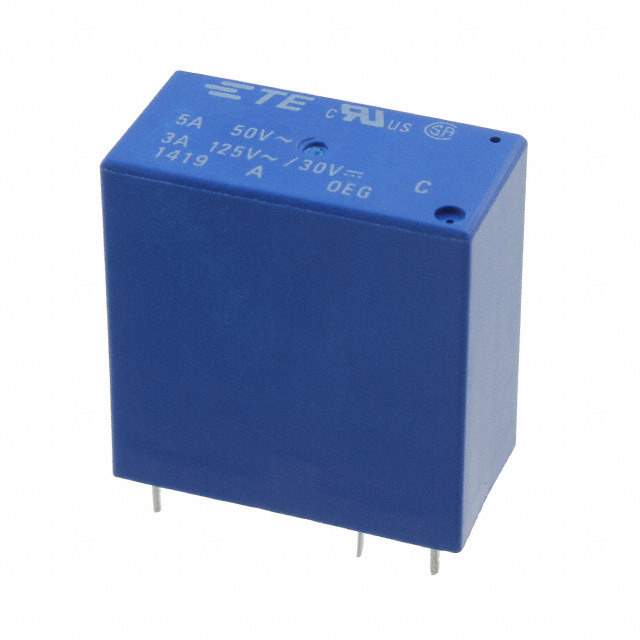

5-1419124-9 Real Image
Same model may have multiple batches, images only for reference.

5-1419124-9

Part No 5-1419124-9
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 24VDC 1.1KOhm 10A DPST-NO (29x13x25.5)mm THT Power Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package DIP
Coil Current 21.8 mA
Coil Power 540 mW
Coil Resistance 1.1 kΩ
Coil Voltage (DC) 24 V
Contact Current Rating 5 A
Contact Material Silver
Depth 12.9 mm
ELV Compliant
Length 24.4 mm
Maximum Operating Temperature 60 °C
Min Operating Temperature -30 °C
Mount Through Hole
Number of Pins 6
Operate Time 20 ms
Packaging Box
REACH SVHC No SVHC
RoHS Compliant
Termination PC Pin
Throw Configuration DPST
Voltage Rating (AC) 240 V
Width 12.9 mm
Win Source Part Number 1083386-5-1419124-9
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 5-1419124-9 CAD Model

Description

This TE Connectivity electronic component is a signal relay with up to 2 amps.

  • Termination: PC pin
  • Contact Material: silver
  • Coil Resistance: 1.1 kΩ
  • Coil Current: 21.8 mA
  • Contact Current Rating: 5 A
  • Operate Time: 20 ms
  • Pins: 6
  • Case/Package: DIP
  • Mounting: SMD (SMT)
  • Coil Power: 540 mW
  • RoHS Compliant: Yes
