Same model may have multiple batches, images only for reference.

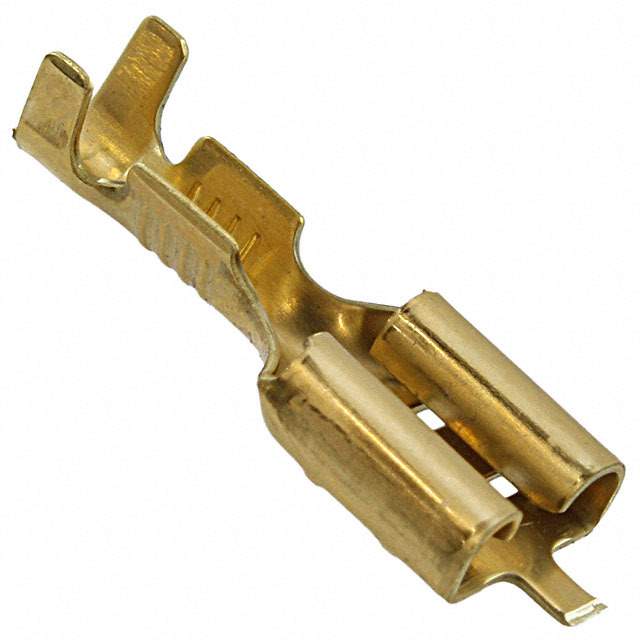

5-160432-3 Real Image
Same model may have multiple batches, images only for reference.

5-160432-3

Part No 5-160432-3
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 15.5-20AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 15.5-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.303" (7.70mm)
Length - Overall 0.748" (19.00mm)
Termination Crimp
Wire Gauge 15.5-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Steel
Contact Finish Nickel
Insulation Diameter 0.091" ~ 0.130" (2.31mm ~ 3.30mm)
Base Product Number 160432
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 51604323,A107198CT,A107198TR,5-160432-3-ND
Standard Package 7,000
Win Source Part Number 1333856-5-160432-3
Ultra Librarian 3D Model Ultra Librarian 5-160432-3 CAD Model

Description

TE Connectivity AMP Connectors Quick Disconnect Connectors are the perfect solution for various applications requiring a quick and easy connection.

  • Termination: Crimp
  • Contact Finish: Nickel
  • Wire Gauge: 15.5-20 AWG
  • Gender: Female
  • Standard Package: 7,000
  • Mounting Style: Free Hanging (In-Line)
  • Terminal Type: Standard
  • Overall Length: 0.748 inches (19.00mm)
  • Insulation: Non-Insulated
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Tab Length: 0.303 inches (7.70mm)
  • Insulation Diameter: 0.091 inches to 0.130 inches (2.31mm to 3.30mm)
  • MSL Level: 1 (Unlimited)
  • ROHS3 Compliant: Yes
