5-534206-8 TE Connectivity
Same model may have multiple batches, images only for reference.

5-534206-8

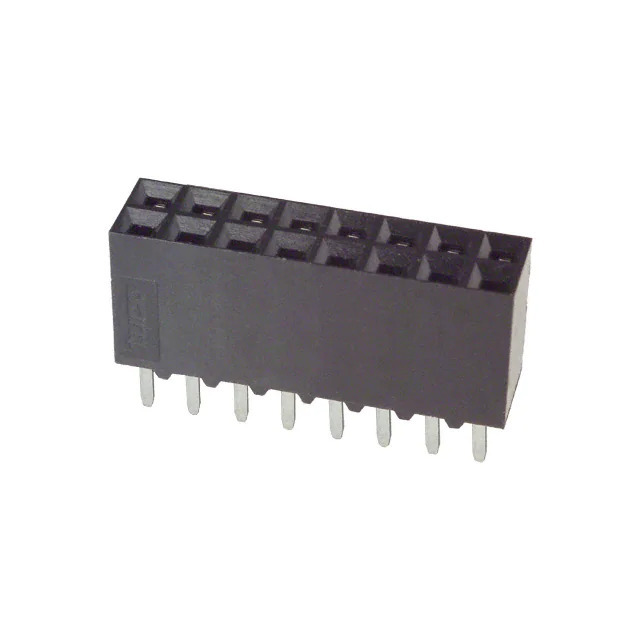

Part No 5-534206-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 16POS 0.1 GOLD PCB / 16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Tube
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.320" (8.13mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -65°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights -
Ingress Protection -
Features -
Current Rating (Amps) 2A
Voltage Rating -
Applications -
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 150.0µin (3.81µm)
Base Product Number 534206
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1363513-5-534206-8
Ultra Librarian 3D Model Ultra Librarian 5-534206-8 CAD Model

Description

The TE Connectivity AMP Connectors AMPMODU Mod II series is a through-hole mounted rectangular connector with a pitch of 0.100" (2.54mm).

  • Series: AMPMODU Mod II
  • Mounting Type: Through Hole
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Board-to-Board or Cable Receptacle
  • Positions: 16
  • Rows: 2
  • Contact Shape: Square
  • Contact Finish: Gold
  • Current Rating: 2A
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Insulation Material: Polyester, Glass Filled
  • Insulation Color: Black
  • Material Flammability Rating: UL94 V-0
  • Status: Active
  • Manufacturer: TE Connectivity AMP Connectors
