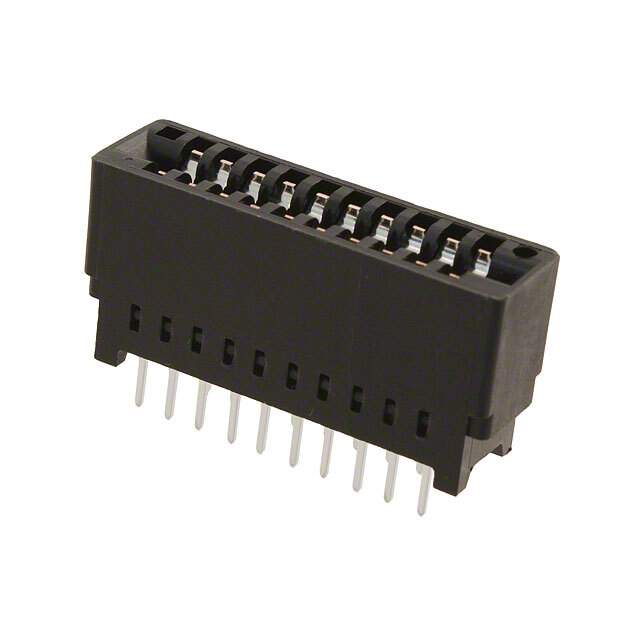

5-5530843-0 Real Image
Same model may have multiple batches, images only for reference.

5-5530843-0

Part No 5-5530843-0
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 20POS 0.100 / 20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity AMP Connectors
Series Standard Edge II
Package Tube
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 20
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Type Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Base Product Number 5530843
Standard Package 15
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337389-5-5530843-0
Ultra Librarian 3D Model Ultra Librarian 5-5530843-0 CAD Model

Description

This card edge connector from TE Connectivity AMP Connectors is a reliable and efficient component for edgeboard connections.

  • Series: 5530843
  • Positions: 20
  • Pitch: 0.100" (2.54mm)
  • Card Type: Dual edge non-specified
  • Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
  • Type: Standard edge II
  • Color: Black
  • Rows: Two
  • Termination: Solder
  • Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
  • Material: Phosphor bronze
  • Insulation Material: Polyester, glass filled
  • Mounting Type: Through-hole
  • Temperature Range: -55°C to 85°C
  • Packaging: Tube
  • Standard Package: 15
