Same model may have multiple batches, images only for reference.

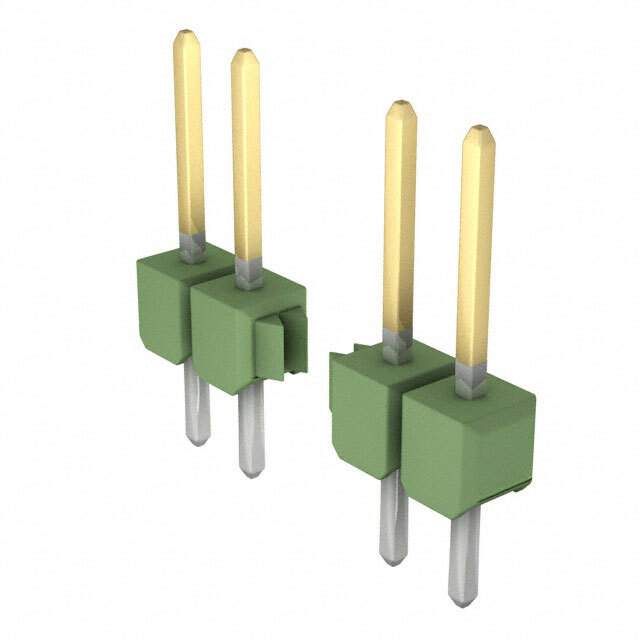

5-826629-0 Real Image
Same model may have multiple batches, images only for reference.

5-826629-0

Part No 5-826629-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 50POS 2.54MM / Connector Header Through Hole 50 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 50
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.264" (6.70mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.500" (12.70mm)
Insulation Height 0.110" (2.79mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Green
Current Rating (Amps) 5A
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number 826629
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 5-826629-0-ND,-E90176-000-SI,-5-826629-0-SI,-E90176-000-SI-ND,A121487
Standard Package 300
Win Source Part Number 1332333-5-826629-0
Ultra Librarian 3D Model Ultra Librarian 5-826629-0 CAD Model

Description

TE Connectivity AMP Connectors Rectangular Connectors Headers, Male Pins is a 50 position header connector with male pins and solder termination.

  • Positions: 50
  • Termination: Solder
  • Temperature Range: -65°C to 105°C
  • Packaging: Bulk
  • Mounting: Through Hole
  • Family: 826629
  • Category: Connectors
  • MSL Level: 1 (Unlimited)
  • Current Rating: 5A
  • REACH Status: Vendor Undefined
  • HTSUS: 8536.69.4040
