Same model may have multiple batches, images only for reference.

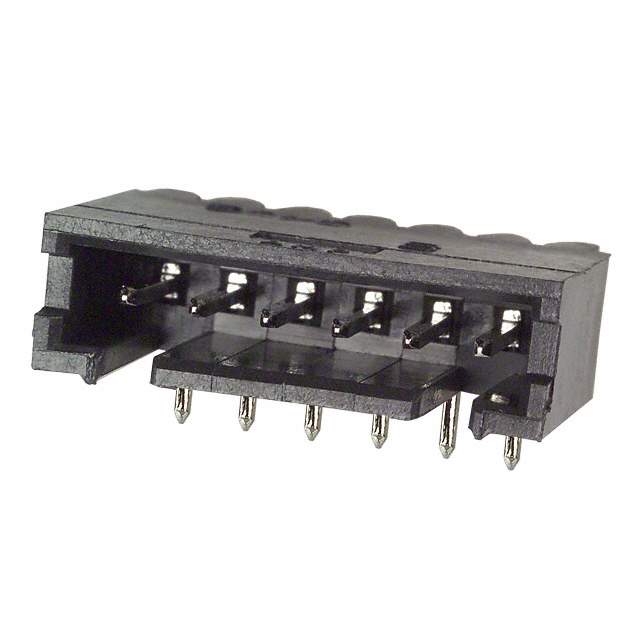

5-102523-4 Real Image
Same model may have multiple batches, images only for reference.

5-102523-4

Part No 5-102523-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 2.54MM / Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.214" (5.44mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 102523
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -5-102523-4-CSI,A34979,-5-102523-4-SI,2266-5-102523-4
Standard Package 29
Win Source Part Number 1332087-5-102523-4
Ultra Librarian 3D Model Ultra Librarian 5-102523-4 CAD Model

Description

The TE Connectivity AMP Connectors 1332087-5-102523-4 is a connector product that falls under the category of connectors, interconnects, rectangular connectors and headers, male pins.

  • Packaging: Tube
  • Positions: 6
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 1
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Tin
  • Insulation Height: 0.214" (5.44mm)
  • Operating Temperature: -65°C to 105°C
  • MSL Level: 1 (Unlimited)
  • RoHS3 Compliant: Yes
