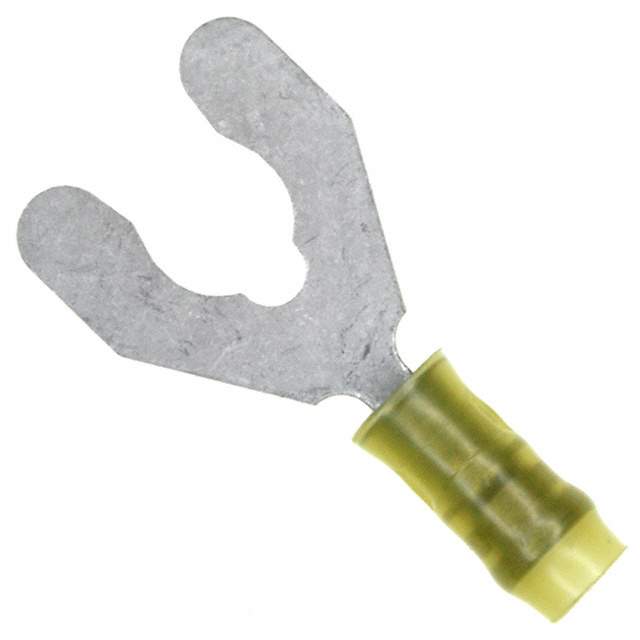

52925 Real Image
Same model may have multiple batches, images only for reference.

52925

Part No 52925
Manufacturer TE Connectivity
Catalog Terminals
Description CONN SPADE TERM 22-26AWG #8 YEL / Yellow 8 Stud Spade Terminal Connector Crimp 22-26 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Spade Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Spring, Snap
Stud/Tab Size 8 Stud
Width - Outer Edges 0.375" (9.53mm)
Length - Overall 0.787" (20.00mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 22-26 AWG
Insulation Insulated
Features Serrated Termination
Color Yellow
Contact Finish Tin
Contact Material Phosphor Bronze
Insulation Diameter 0.050" ~ 0.082" (1.27mm ~ 2.08mm)
Material - Insulation Polyamide (PA), Nylon
Length - Ring Center to Termination 0.281" (7.14mm)
Length - Termination 0.331" (8.41mm)
Tongue Inside Opening 0.164" (4.17mm)
Base Product Number 5292
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27436,52925-ND
Standard Package 1,000
Win Source Part Number 1333648-52925
Ultra Librarian 3D Model Ultra Librarian 52925 CAD Model

Description

The 52925 is a pack of 1,000 yellow insulated spade connectors from TE Connectivity AMP Connectors.

  • Termination: Serrated
  • Wire Gauge: 22-26 AWG
  • Insulation Material: Polyamide (PA) and Nylon
  • Voltage Rating: 30VAC
  • Stud/Tab Size: 8 Stud
  • Overall Length: 0.787" (20.00mm)
  • Width of Outer Edges: 0.375" (9.53mm)
  • Operating Temperature: -65°C to 125°C
