Same model may have multiple batches, images only for reference.

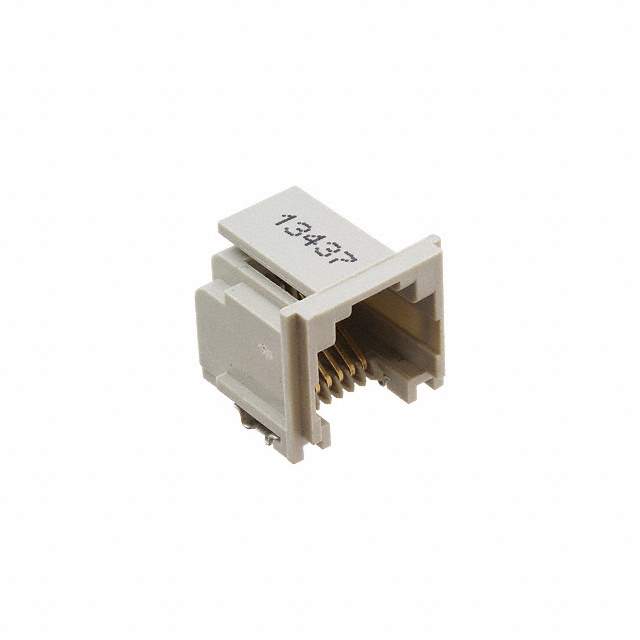

5406514-2 Real Image
Same model may have multiple batches, images only for reference.

5406514-2

Part No 5406514-2
Manufacturer TE Connectivity
Catalog Modular Connectors
Description Single Port Modular Jacks | CONN MOD JACK 6P6C R/A UNSHLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Cut Tape (CT)
Connector Type Jack
Number of Positions/Contacts 6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Ports 1
Number of Rows 1
Mounting Style SMD
Orientation 90° Angle (Right)
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Lock
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 50.0μin (1.27μm)
Dielectric Material Thermoplastic
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129166-5406514-2
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5406514-2 CAD Model

Description

The 1129166-5406514-2 is a jack connector manufactured by TE Connectivity AMP Connectors.

  • Manufacturer: TE Connectivity AMP Connectors
  • Feature: Board Lock
  • Mounting: SMD
  • Connector Type: Jack
  • Rows: One
  • Positions/Contacts: 6p6c RJ11, RJ12, RJ14, RJ25
  • Dielectric Material: Thermoplastic
  • Shielding: Unshielded
  • Contact Material: Copper Alloy
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
