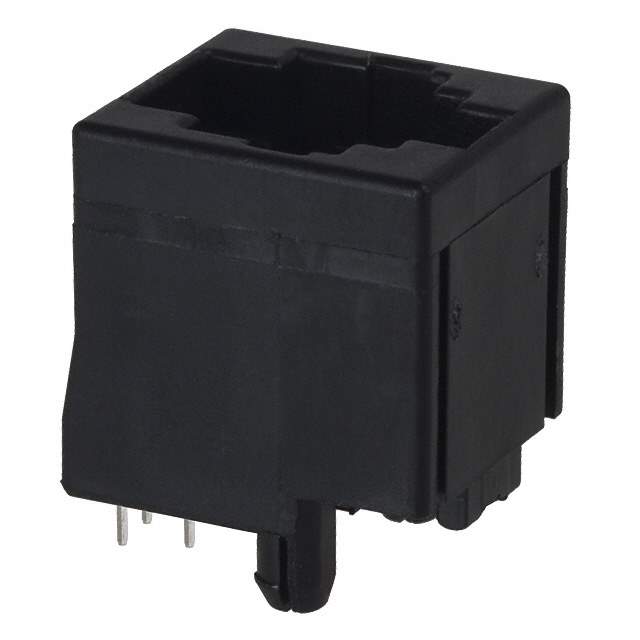

5520425-3

Name: 5520425-3
Brand: TE Connectivity
SKU: 1202198
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5520425-3
Manufacturer	TE Connectivity
Catalog	Modular Connectors
Description	CONN MOD JACK 6P6C VERT UNSHLD / Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Vertical Unshielded Cat3
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors - Jacks
Mfr	TE Connectivity AMP Connectors
Package	Tray
Connector Type	Jack
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Ports	1
Number of Rows	1
Mounting Type	Through Hole
Orientation	Vertical
Termination	Solder
Shielding	Unshielded
Ratings	Cat3
Features	Board Lock
LED Color	Does Not Contain LED
Tab Direction	User Selectable
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	50.0µin (1.27µm)
Housing Material	Polybutylene Terephthalate (PBT), Polyester
Temperature Range - Operating	-40°C ~ 85°C
Base Product Number	5520425
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2266-5520425-3,A31415,55204253,-5520425-3-SI
Standard Package	176
Win Source Part Number	1202198-5520425-3
Ultra Librarian 3D Model	Ultra Librarian 5520425-3 CAD Model

Alternative Products

Description

This TE Connectivity AMP Connectors jack connector features a board lock design and is suitable for use in modular connectors manufactured by TE Connectivity AMP Connectors.

Row(s): Single
Positions/Contacts: 6
Application: Cat3
Shielded: Unshielded
Contact Finish: Gold
Contact Finish Thickness: 50.0μin (1.27μm)
Housing Material: Polybutylene Terephthalate (PBT) and Polyester
Contact Material: Phosphor Bronze
Mounting: Through Hole
Temperature Range: -40°C to 85°C
