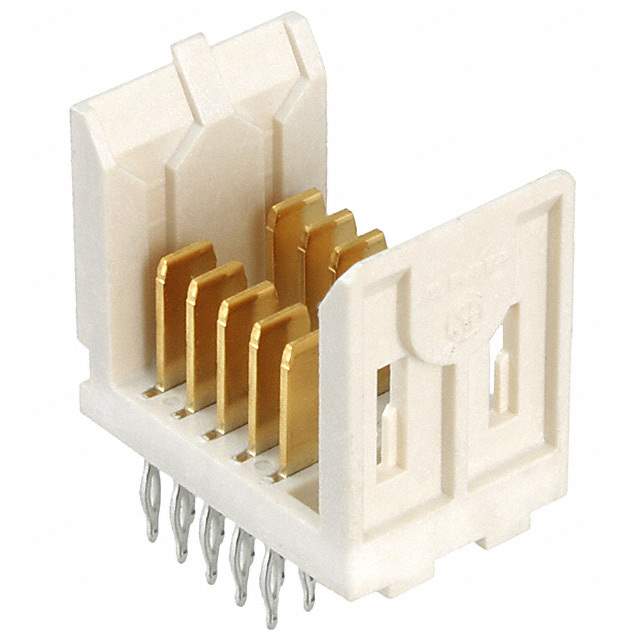

5536642-1 Real Image
Same model may have multiple batches, images only for reference.

5536642-1

Part No 5536642-1
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN HEADER FUTUREBUS 10POS PCB  /  10 Connector Header, Male Blades Through Hole Natural Futurebus
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity AMP Connectors
Series Z-PACK
Package Tube
Connector Type Header, Male Blades
Connector Style Futurebus
Number of Positions 10
Number of Positions Loaded All
Pitch 0.236" (6.00mm)
Number of Rows 5
Mounting Type Through Hole
Termination Press-Fit
Contact Layout, Typical 10 Power
Contact Finish Gold
Contact Finish Thickness Flash
Color Natural
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 125°C
Voltage Rating 30V
Base Product Number 5536642
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 55366421,-C16710-000-SI-ND,-5536642-1-SI,-C16710-000-SI
Standard Package 48
Win Source Part Number 1024293-5536642-1
Ultra Librarian 3D Model Ultra Librarian 5536642-1 CAD Model

Description

The Z-PACK header male blades connector is a high-quality connector that is suitable for use in various electronic devices.

  • Color: Natural
  • Material: UL94 V-0
  • Voltage Rating: 30V
  • Operating Temperature: -55°C to 125°C
  • Power Contact Layout: 10
  • Loaded Positions: All
  • Connector Style: Futurebus
  • Mounting Type: Through-Hole
  • Termination: Press-Fit
  • Contact Finish: Gold with Flash Thickness
  • Package: Tube
  • Standard Package: 48
