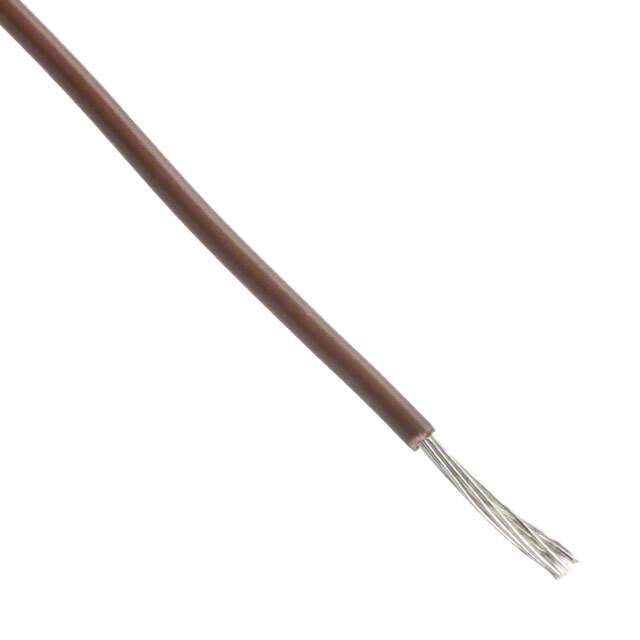

55A0111-12-1 Real Image
Same model may have multiple batches, images only for reference.

55A0111-12-1

Part No 55A0111-12-1
Manufacturer TE Connectivity
Catalog Single Conductor Cables (Hook - UpWire)
Description HOOK-UP STRND 12AWG BROWN 1=1FT  /  12 AWG Hook-Up Wire 37/28 Brown 600V Enter Number of Feet in Order Quantity
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Single Conductor Cables (Hook-Up Wire)
Mfr TE Connectivity Raychem Cable Protection
Series MIL-W-22759 and MIL-C-27500, 55A0111
Package Continuous Spool
Cable Type Hook-Up
Wire Gauge 12 AWG
Conductor Strand 37/28
Conductor Material Copper, Tinned
Jacket (Insulation) Material Ethylene Tetrafluoroethylene (ETFE), Irradiated
Jacket (Insulation) Diameter 0.103" (2.62mm)
Length Enter Number of Feet in Order Quantity
Voltage 600V
Temperature Range - Operating -65°C ~ 150°C
Jacket Color Brown
Spool Size 2000.0' (609.6m)
Base Product Number 55A0111
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 55A0111-12-1-MS,55A0111-12-1-ND,6-1191573-6,216250-000-ND,55A0111-12-1-MS-ND,216250-000,55A0111-12-1-DS
Standard Package 1
Win Source Part Number 1035083-55A0111-12-1
Ultra Librarian 3D Model Ultra Librarian 55A0111-12-1 CAD Model

Description

The 1035083-55A0111-12-1 is a single conductor cable from MIL-W-22759 and MIL-C-27500, 55A0111 series manufactured by MIL-W-22759 and MIL-C-27500.

  • Package: Digi-Spool® continuous spool
  • Wire Gauge: 12 AWG
  • Voltage Rating: 600V
  • Conductor Strand: 37/28
  • Conductor Material: copper, tinned
  • Jacket (Insulation) Material: ethylene tetrafluoroethylene (ETFE), irradiated
  • Jacket Diameter: 0.103" (2.62mm)
  • Jacket Color: brown
  • Temperature Range: -65°C ~ 150°C
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • HTSUS Code: 8544.49.3080
  • Spool Size: 2000.0' (609.6m)
