Same model may have multiple batches, images only for reference.

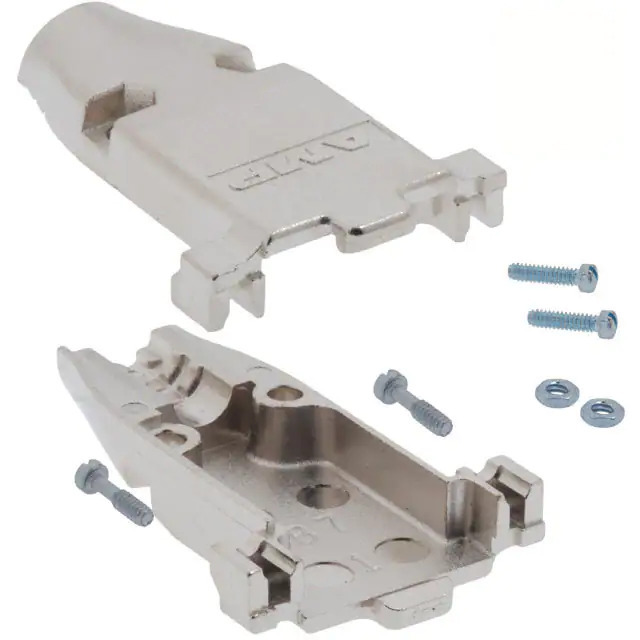

5745171-1 TE Connectivity
Same model may have multiple batches, images only for reference.

5745171-1

Part No 5745171-1
Manufacturer TE Connectivity
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 9POS 180DEG SHLD / 9 Position Two Piece Backshell Connector Silver 180° Shielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Backshells, Hoods
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE
Package Bulk
Product Status Active
Accessory Type Two Piece Backshell
Number of Positions 9
Cable Type Round
Cable Exit 180°
Shielding Shielded
Material Metal, Zinc Alloy
Plating Nickel over Copper
Hardware Assembly Hardware, Strain Relief
Features Mating Screws 4-40
Color Silver
Base Product Number 5745171
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363799-5745171-1
Ultra Librarian 3D Model Ultra Librarian 5745171-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE D-Sub Connector Backshell is a high-quality backshell designed for D-sub connectors.

  • Backshell Type: Two-Piece
  • Color: Silver
  • Shielding: Yes
  • For Use With: 9-Position D-Sub Connectors
  • Material: Metal, Zinc Alloy
  • Cable Type: Round
  • Cable Exit: 180 Degree
  • Series: AMPLIMITE
  • Product Status: Active
