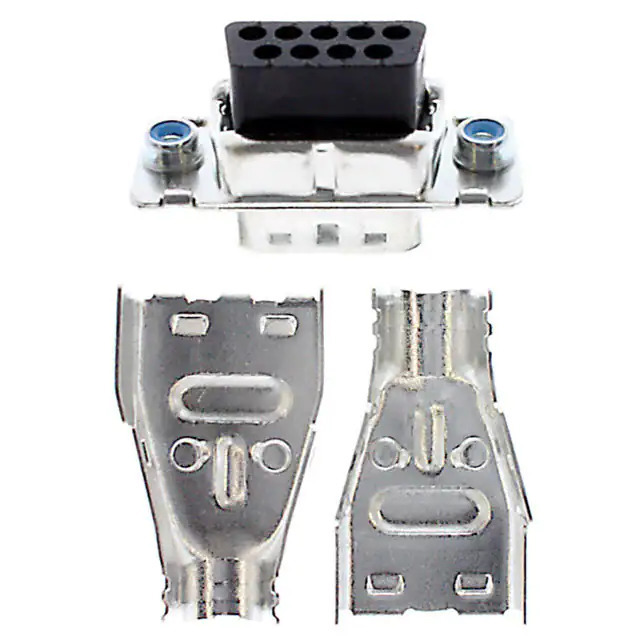

5748526-1 TE Connectivity
Same model may have multiple batches, images only for reference.

5748526-1

Part No 5748526-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB HOUSING PLUG 9POS / Plug for Male Contacts Housing D-Sub Connector 9 Position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Plug for Male Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Cable Side (4-40)
Features Backshell, Grounding Indents, Shielded
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness 200µin (5.08µm)
Ingress Protection -
Mating Cycles -
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 5748526
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363743-5748526-1
Ultra Librarian 3D Model Ultra Librarian 5748526-1 CAD Model

Description

The 1363743-5748526-1 is a D-Sub connector housing from TE Connectivity AMP Connectors.

  • Series: AMPLIMITE HDP-20
  • Mounting Type: Free Hanging (In-Line)
  • Housing Material: Polyamide (PA) with Glass Filling
  • Color: Black
  • Connector Type: Plug
  • Contact Gender: Male Contacts
  • Number of Positions: 9
  • Number of Rows: 2
  • Features: Grounding Indents, Shielded
  • Product Status: Active
  • Packaging: Bulk
