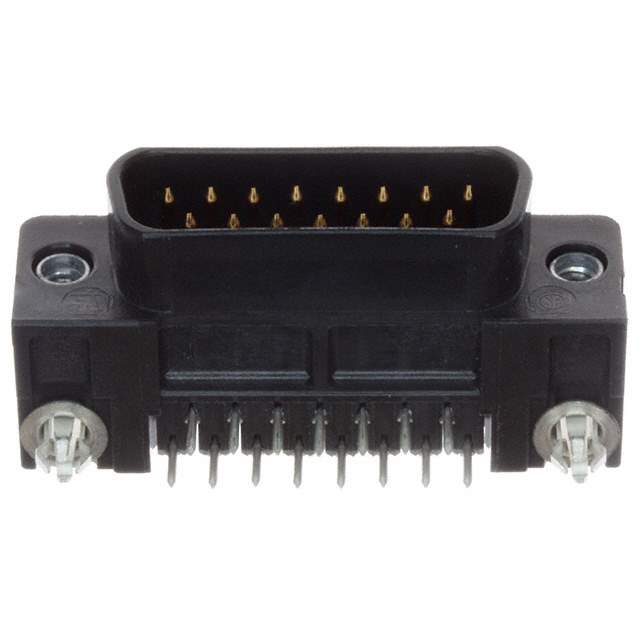

5748904-1

Part No 5748904-1
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 15POS R/A SOLDER
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Mounting Through Hole, Right Angle
Flange Feature Housing/Shell (4-40)
Termination Solder
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C to 105°C
Voltage Rating 125V
Color Black
Backset Spacing 0.318" (8.08mm)
Win Source Part Number 038968-5748904-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5748904-1 CAD Model

Description

Product Description

The 5748904-1 is a robust electronic connector designed to deliver high efficiency in data transmission and connectivity.

Features and Benefits

  • Reliable connection with excellent data transfer rates.
  • Compact and lightweight design.
  • High resistance to environmental stress.

Applications

  • Server and data center cables.
  • Home automation systems.
  • Medical equipment connections.

Additional Details: Perfect for use in critical systems where precision and reliability are paramount, the 5748904-1 assures consistent performance.
