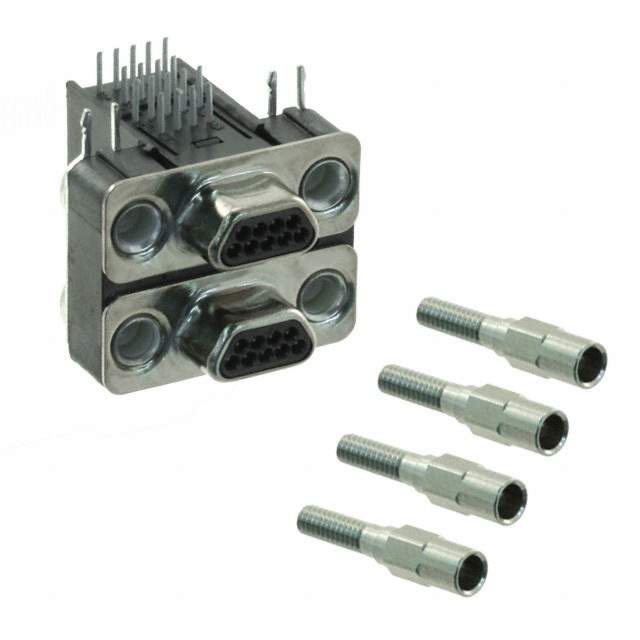

MDSM-18PE-Z10-VR25

Part No MDSM-18PE-Z10-VR25
Manufacturer ITT Cannon, LLC
Catalog D - Sub Connectors
Description CONN MICROD PLUG 9POS R/A SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer ITT Cannon, LLC
Packaging Tube/Rail
Status Active
Connector Style D-Type, Micro-D - Stacked
Connector Type Plug, Male Pins
Number of Positions 9, 9
Number of Rows 2, 2
Shell Size, Connector Layout 0.050 Pitch x 0.050 Row to Row
Contact Type Signal
Mounting Panel Mount, Through Hole, Right Angle
Flange Feature Mating Side, Female Screwlock (2-56)
Termination Solder
Features Board Lock, Shielded
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C to 125°C
Current Rating 1.8A, 2.5A
Housing Material Thermoplastic
Win Source Part Number 041586-MDSM-18PE-Z10-VR25
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MDSM-18PE-Z10-VR25 CAD Model

Description

The MDSM-18PE-Z10-VR25 is a plug male pins connector from ITT Cannon, LLC.

  • Positions: 9
  • Shielded: Yes
  • Contact Type: Signal
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Not specified
  • Connector Style: D-Type, Micro-D - Stacked
  • Voltage Rating: Not specified
  • Current Rating: 1.8A and 2.5A
  • Housing Material: Thermoplastic
  • Material Flammability Rating: UL94 V-0
  • Mounting Options: Panel Mount, Through Hole, and Right Angle
  • Flange Feature: Mating Side Female Screwlock (2-56)
  • Shell Material: Steel
  • Finish: Nickel Plated
  • Shell Size and Connector Layout: 0.050 Pitch x 0.050 Row to Row
  • Temperature Range: -55°C to 125°C
  • Part Number: 041586-MDSM-18PE-Z10-VR25
