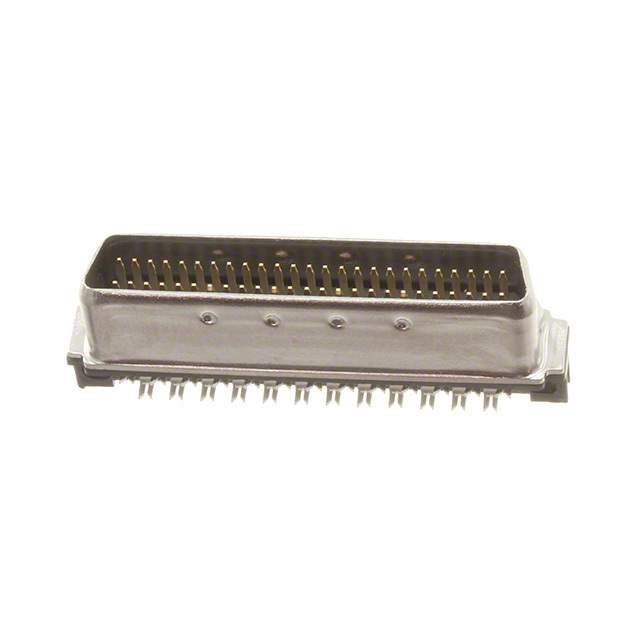

5749110-1 Real Image
Same model may have multiple batches, images only for reference.

5749110-1

Part No 5749110-1
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN PLUG 50POS IDC / 50 Position Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE .050 III
Connector Type Plug, Male Pins
Number of Positions 50
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Features Shielded
Voltage Rating 30V
Color Black
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5749110
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Names 5749110-1-ND,A128901
Standard Package 13
Win Source Part Number 1026808-5749110-1
Ultra Librarian 3D Model Ultra Librarian 5749110-1 CAD Model

Description

The TE Connectivity AMP Connectors 5749110-1 is a D-Sub Connector with a series of AMPLIMITE .050 III.

  • Positions: 50
  • Color: Black
  • Shielded: Yes
  • Connector Type: Plug, Male Pins
  • Contact Type: Signal
  • Rows: 2
  • Termination: IDC, Ribbon Cable
  • Contact Finish: Gold
  • Voltage Rating: 30V
  • Temperature Range: -55°C ~ 105°C
  • MSL: 1 (Unlimited)
  • Current Rating: 1A
  • HTSUS: 8536.69.8000
