Same model may have multiple batches, images only for reference.

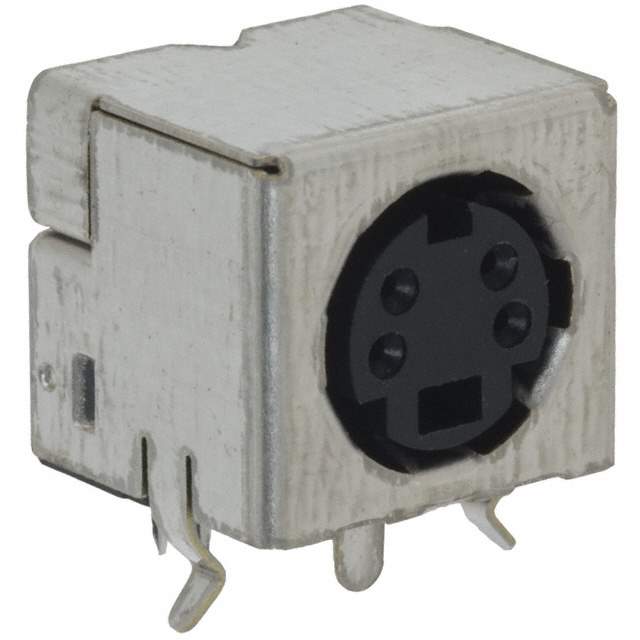

5749181-1 Real Image
Same model may have multiple batches, images only for reference.

5749181-1

Part No 5749181-1
Manufacturer TE Connectivity
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE MINI DIN 4P SLDR / 4 Position Circular Connector Receptacle, Female Sockets Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle, Female Sockets
Number of Positions 4
Shell Size - Insert Mini DIN
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Contact Finish - Mating Gold
Material Flammability Rating UL94 V-0
Features Board Lock
Shielding Shielded
Current Rating (Amps) 1A
Voltage Rating 30VDC
Temperature Range - Operating -55°C ~ 105°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Applications Audio, Video
Base Product Number 5749181
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number 57491811,-5749181-1-SI
Standard Package 40
Win Source Part Number 1334530-5749181-1
Ultra Librarian 3D Model Ultra Librarian 5749181-1 CAD Model

Description

The TE Connectivity AMP Connectors 1334530-5749181-1 is a circular connector assembly with a 4-position receptacle for female sockets.

  • Positions: 4
  • Contact Gender: Female Sockets
  • Board Lock: Yes
  • Fastening Type: Push-Pull
  • Contact Material: Copper Alloy
  • Contact Finish - Mating: Gold
  • Voltage Rating: 30VDC
  • Current Rating: 1A
  • Shell Size: Mini DIN
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C to 105°C
  • Shielded: Yes
  • Mounting: Through-Hole, Right Angle
  • Packaging: Tube
  • Standard Package: 40
  • Application: Audio and Video
