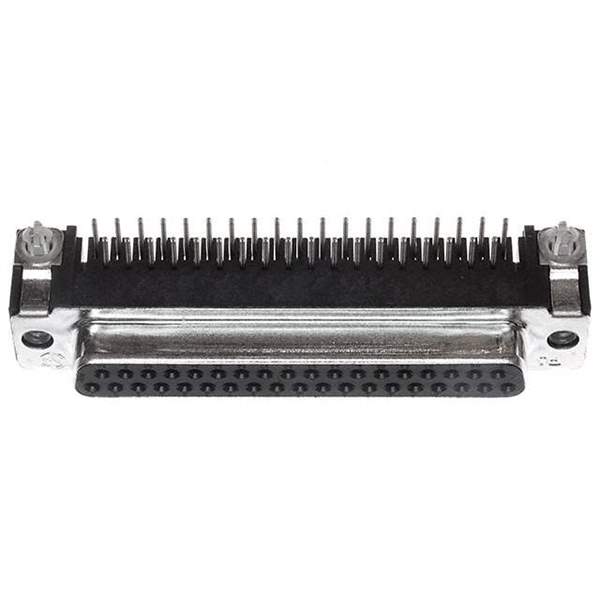

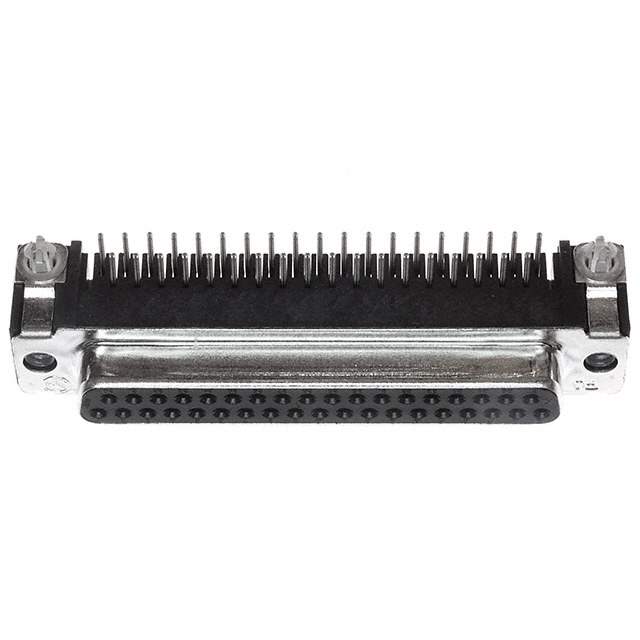

Same model may have multiple batches, images only for reference.

5788802-1

Name: 5788802-1
Brand: TE Connectivity
SKU: 1002463
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5788802-1
Manufacturer	TE Connectivity
Catalog	D - Sub Connectors
Description	CONN D-SUB RCPT 37POS R/A SLDR / 37 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub Connectors
Mfr	TE Connectivity AMP Connectors
Series	AMPLIMITE HD-20
Package	Bulk
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	37
Number of Rows	2
Mounting Type	Through Hole, Right Angle
Shell Size, Connector Layout	4 (DC, C)
Contact Type	Signal
Flange Feature	Housing/Shell (4-40)
Termination	Solder
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	6A
Backset Spacing	0.318" (8.08mm)
Features	Board Lock
Voltage Rating	125V
Color	Black
Dielectric Material	Polyamide (PA), Nylon
Contact Material	Phosphor Bronze
Temperature Range - Operating	-55°C ~ 105°C
Base Product Number	5788802
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2266-5788802-1,A35141,57888021
Standard Package	52
Win Source Part Number	1002463-5788802-1
Ultra Librarian 3D Model	Ultra Librarian 5788802-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 series D-sub connector is a 37-position receptacle with female sockets.

Positions: 37
Connector Type: Receptacle, Female Sockets
Features: Board lock
Mounting: Through-hole, right angle
Contact Material: Phosphor bronze
Contact Finish: Gold
Contact Finish Thickness: 30.0μin (0.76μm)
Shell Material: Steel
Shell Plating: Tin-plated finish
Dielectric Material: Polyamide (PA) nylon
Voltage Rating: 125V
Current Rating: 6A
Temperature Range: -55°C to 105°C
Backset Spacing: 0.318" (8.08mm)
Material Flammability: UL94 V-0 rated
Ingress Protection Rating: Not specified
Package: Bulk
Standard Package: 52
