Same model may have multiple batches, images only for reference.

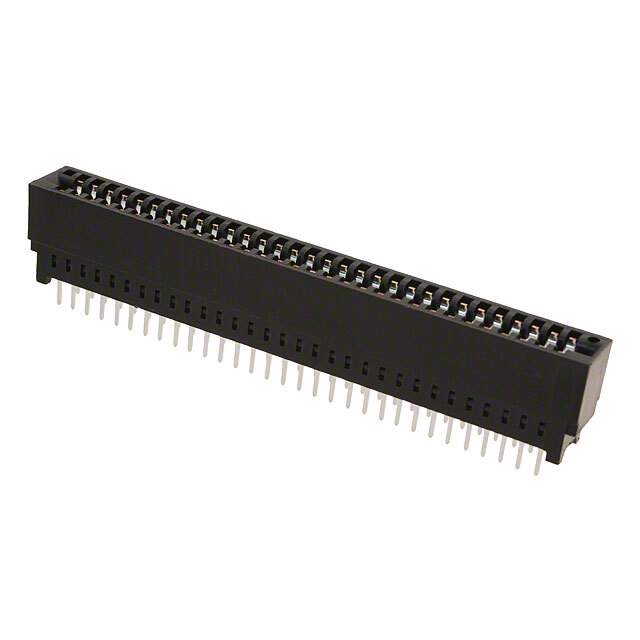

6-5530843-5 Real Image
Same model may have multiple batches, images only for reference.

6-5530843-5

Part No 6-5530843-5
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 62POS 0.100 / 62 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 62
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Base Product Number 5530843
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A31724,655308435,-6-5530843-5-SI,2266-6-5530843-5
Standard Package 108
Win Source Part Number 1334038-6-5530843-5
Ultra Librarian 3D Model Ultra Librarian 6-5530843-5 CAD Model

Description

The 1334038-6-5530843-5 is a female card edge connector from TE Connectivity AMP Connectors with 62 positions and a pitch of 0.100 inches (2.54mm).

  • Positions: 62
  • Pitch: 0.100 inches (2.54mm)
  • Color: Black
  • Termination Type: Solderable
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester and Glass-Filled
  • Readout: Dual
  • Card Type: Non-Specified Dual-Edge
  • Card Thickness Range: 0.054 inches to 0.070 inches (1.37mm to 1.78mm)
  • Mounting: Through-Hole
  • Standard Package: 108
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
