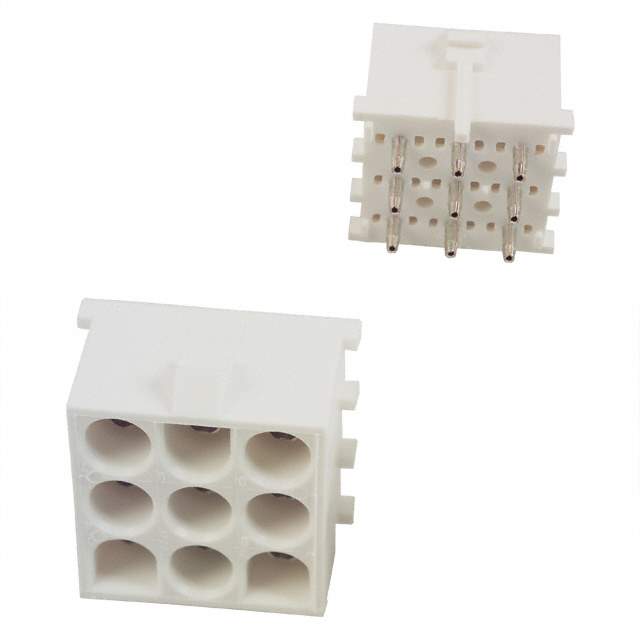

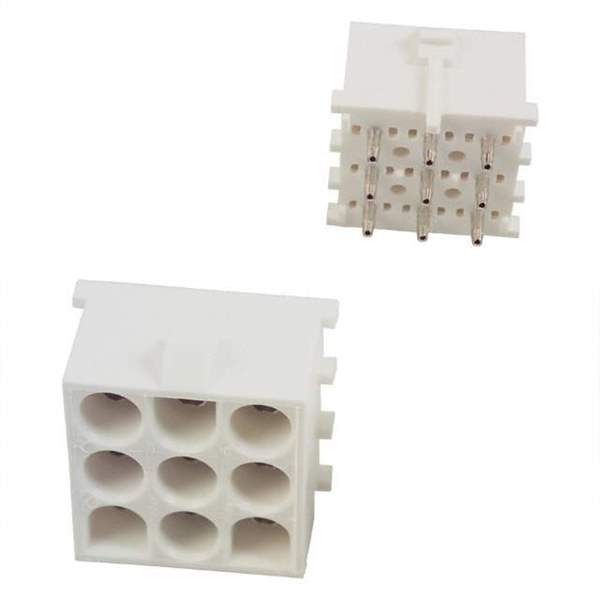

641972-1 Real Image
Same model may have multiple batches, images only for reference.

641972-1

Part No 641972-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 9POS VERT .250 TIN
Datasheet
641972-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 9
Number of Positions Loaded All
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Board Guide
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating 12A
Voltage Rating 600VAC
Applications General Purpose
Win Source Part Number 1006670-641972-1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 641972-1 CAD Model

Description

The 641972-1 from TE Connectivity AMP Connectors is a header connector that has 9 positions and is commonly used in various applications.

  • Positions: 9
  • Positions Loaded: all positions
  • Feature: board guide
  • Connector Type: male pin
  • Shrouding: shrouded 4 wall
  • Contact Finish for Mating and Post: tin
  • Contact Length for Post: 0.155" (3.94mm)
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: white
  • Supply and Demand Status: balanced
