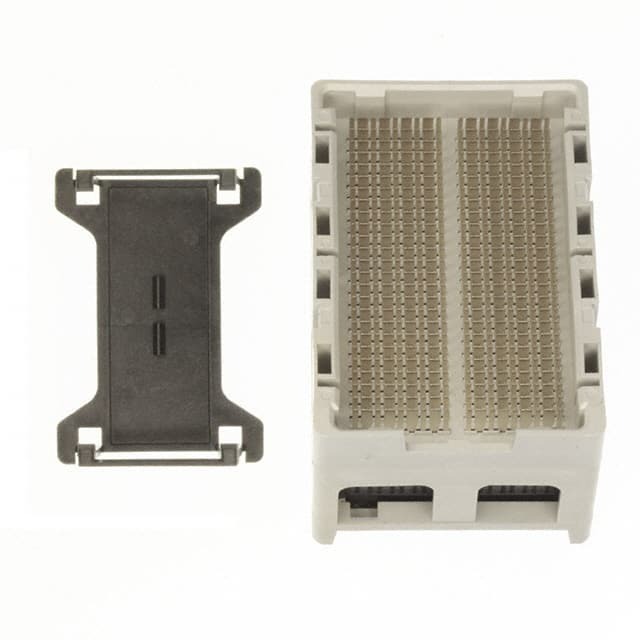

Same model may have multiple batches, images only for reference.

7-1761614-0

Name: 7-1761614-0
Brand: TE Connectivity
SKU: 857077
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	7-1761614-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN DIFF ARRAY PLUG 200POS SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	TE Connectivity
Series	STEP-Z
Package	Tray
Product Status	Active
Connector Type	Differential Pair Array, Male
Number of Positions	200 Signal (100 Pair)
Pitch	0.051" (1.30mm)
Number of Rows	18
Mounting Type	Surface Mount
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	25mm, 31mm, 35mm
Height Above Board	0.825" (20.95mm)
Base Product Number	1761614
Standard Package	25 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	857077-7-1761614-0
Ultra Librarian 3D Model	Ultra Librarian 7-1761614-0 CAD Model

Alternative Products

Description

The 857078-7-188275-6 is a Micro-MaTch series connector designed for use in various electronic applications from TE Connectivity.

Connector Type: Receptacle
Contact Type: Forked
Positions: 6
Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Voltage Rating: 100VDC
Applications: Automotive, General Purpose
Packaging: Tape & Reel
Standard Package: 900 pcs
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass-Filled
Mounting Type: Surface Mount
Row Spacing: 0.100" (2.54mm)
Temperature Range: -40°C to 105°C
Product Status: Active
