Same model may have multiple batches, images only for reference.

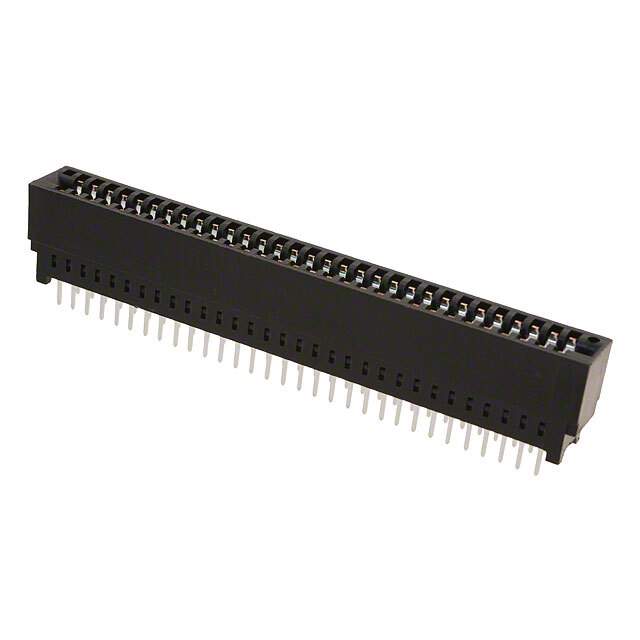

7-5530843-0 Real Image
Same model may have multiple batches, images only for reference.

7-5530843-0

Part No 7-5530843-0
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 62POS 0.100 / 62 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 62
Card Thickness 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Read Out Dual
Mounting Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Polyester, Glass Filled
Base Product Number 5530843
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A121053,2266-7-5530843-0,-7-5530843-0-SI,7-5530843-0-ND
Standard Package 108
Win Source Part Number 1334031-7-5530843-0
Ultra Librarian 3D Model Ultra Librarian 7-5530843-0 CAD Model

Description

The 1334031-7-5530843-0 is an edgeboard connector from TE Connectivity AMP Connectors with a pitch of 0.100 inches (2.54mm) and 62 positions.

  • Pitch: 0.100 inches (2.54mm)
  • Positions: 62
  • Gender: Female
  • Mounting Style: Through-Hole
  • Color: Black
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester, Glass-Filled
  • Card Type: Non Specified - Dual Edge
  • Readout: Dual
  • Operating Temperature Range: -55°C to 85°C
  • Packaging: Bulk
