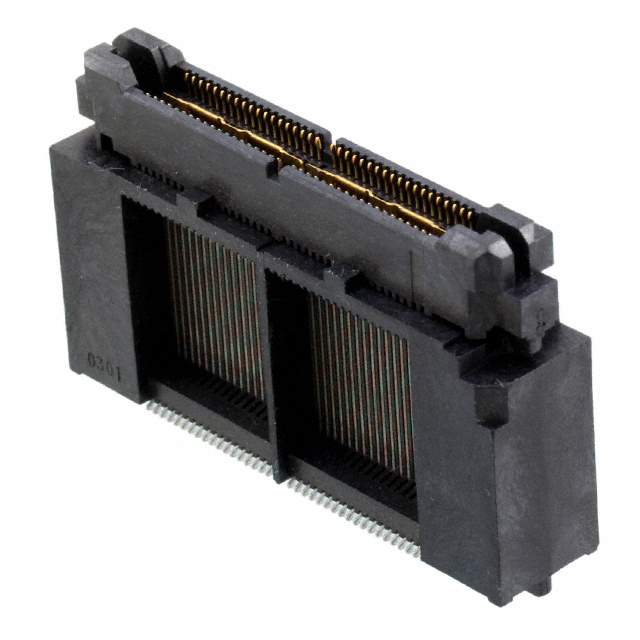

767017-2 Real Image
Same model may have multiple batches, images only for reference.

767017-2

Part No 767017-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG 76POS SMD GOLD / 76 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Plug, Outer Shroud Contacts
Number of Positions 76
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 22.86mm, 31.9mm
Height Above Board 0.892" (22.66mm)
Base Product Number 767017
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -767017-2-SI,767017-2-ND,A115649
Standard Package 14
Win Source Part Number 1332034-767017-2
Ultra Librarian 3D Model Ultra Librarian 767017-2 CAD Model

Description

The 767017-2 is a 76-position rectangular connector designed for board-to-board applications.

  • Package: Tube
  • Pitch: 0.025" (0.64mm)
  • Features: Board Guide, Ground Bus (Plane)
  • Connector Type: Plug
  • Contact Type: Outer Shroud
  • Rows: Two
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mated Stacking Height: 22.86mm, 31.9mm
  • Height Above Board: 0.892" (22.66mm)
  • Standard Package: 14
  • Mounting Technology: Surface Mount
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity AMP Connectors
