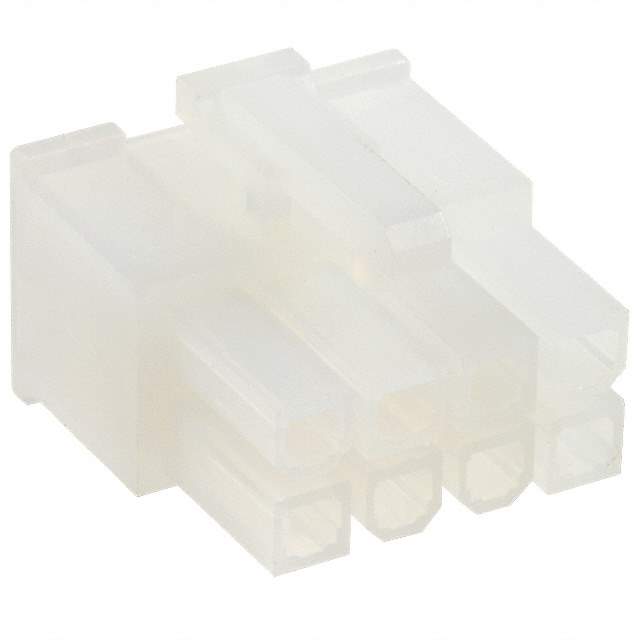

Same model may have multiple batches, images only for reference.

794954-8

Name: 794954-8
Brand: TE Connectivity
SKU: 1334250
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	794954-8
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 8POS 4.20MM / 8 Rectangular Connectors - Housings Receptacle Natural 0.165" (4.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.165" (4.20mm)
Number of Rows	2
Row Spacing	0.165" (4.20mm)
Mounting	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Note	Contacts Not Included
Base Product Number	794954
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8538.90.6000
Other Part Number	7949548,A30593,2266-794954-8,-794954-8-CSI,-794954-8-LSI,-794954-8-SI
Standard Package	500
Win Source Part Number	1334250-794954-8
Ultra Librarian 3D Model	Ultra Librarian 794954-8 CAD Model

Alternative Products

Description

This electronic component is a product of TE Connectivity AMP Connectors.

Positions: 8
Pitch: 0.165" (4.20mm)
Color: Natural
Connector Type: Receptacle
Contact Type: Female socket
Rows: 2
Row Spacing: 0.165" (4.20mm)
Fastening Type: Latch lock
Contact Termination: Crimp
Note: Contacts not included
Standard Package: 500
Mounting: Free hanging (in-line)
MSL Level: 1 (unlimited)
REACH Status: Vendor undefined
HTSUS: 8538.90.6000
RoHS Status: RoHS compliant
