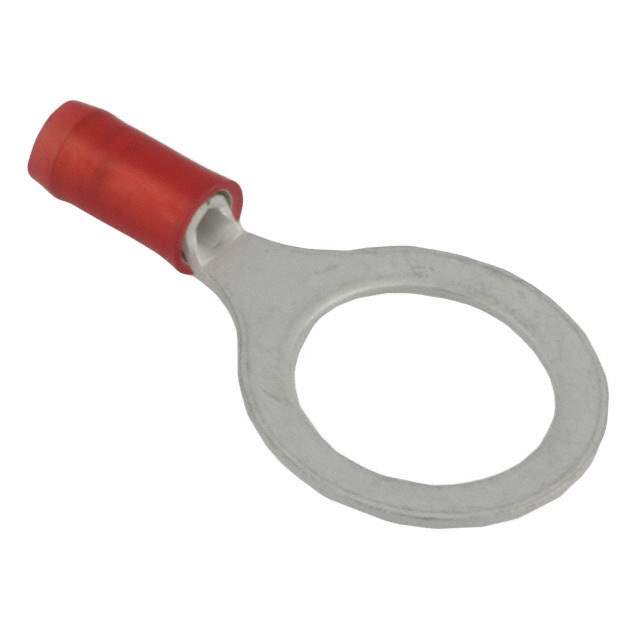

8-328975-1 Real Image
Same model may have multiple batches, images only for reference.

8-328975-1

Part No 8-328975-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 16-22AWG #1/2  /  Ring Terminal Connector 1/2 Stud Circular 16-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Bulk
Terminal Type Circular
Stud/Tab Size 1/2 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.713" (18.11mm)
Length - Overall 1.293" (32.84mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.056" ~ 0.110" (1.42mm ~ 2.79mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 328975
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 8-328975-1-ND,A136749,2266-8-328975-1,83289751
Standard Package 100
Win Source Part Number 1111218-8-328975-1
Ultra Librarian 3D Model Ultra Librarian 8-328975-1 CAD Model

Description

The 8-328975-1 is a ring connector terminal from TE Connectivity AMP Connectors that belongs to the PIDG series.

  • Series: PIDG
  • Color: Red
  • Termination Features: Serrated
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.90.4000
  • Package: Bulk
  • Standard Package: 100
  • Thickness: 0.031 inches (0.79mm)
  • Contact Material: Copper
