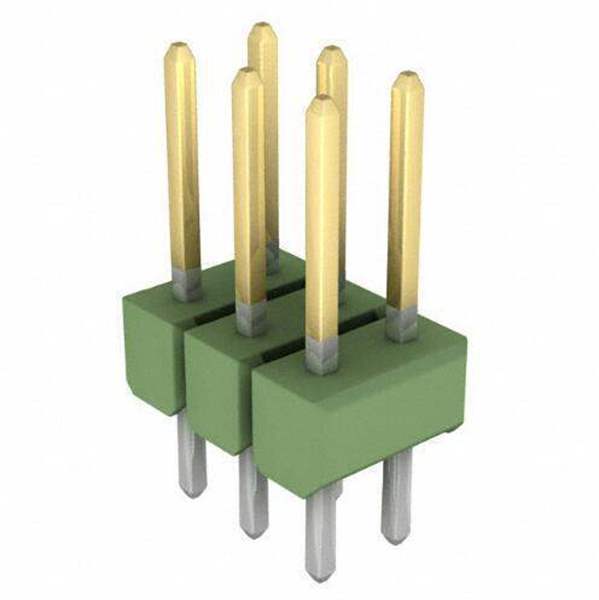

TE Connectivity AMP Connectors826632-3
Same model may have multiple batches, images only for reference.

826632-3

Part No 826632-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer 826632-3
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging  Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.264" (6.70mm)
Insulation Height 0.110" (2.79mm)
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Operating Temperature -65°C ~ 105°C
Win Source Part Number WS1304370-826632-3
Ultra Librarian 3D Model Ultra Librarian 826632-3 CAD Model

Description

PCB Mount Header, Vertical, Board-to-Board, 6 Position, 2.54 mm [. 1 in] Centerline, Breakaway, AMPMODU Headers
