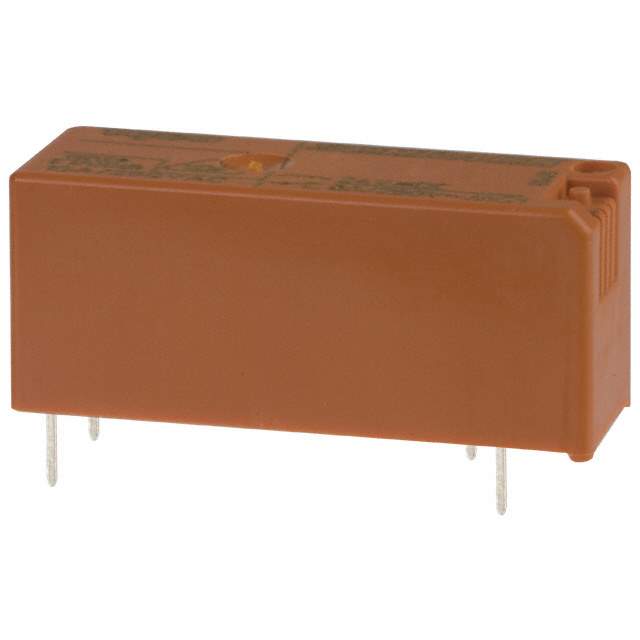

9-1393224-6 Real Image
Same model may have multiple batches, images only for reference.

9-1393224-6

Part No 9-1393224-6
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 24V
Datasheet
9-1393224-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series RY, SCHRACK
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Current 10.2mA
Coil Voltage 24VDC
Contact Form SPST-NC (1 Form B)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Maximum) 16.8 VDC
Turn Off Voltage (Minimum) 2.4 VDC
Operate Time 9ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Nickel (AgNi)
Coil Power 245 mW
Coil Resistance 2.35 kOhms
Operating Temperature Range -40°C ~ 70°C
Win Source Part Number 766463-9-1393224-6
Popularity Medium
Supply and Demand Status Limited
Family Name 1393224
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Austria, Czech Republic
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 9-1393224-6 CAD Model

Description

The 1393224-6 is a general relay from TE Connectivity Potter & Brumfield Relays.

  • Contact Rating: 8A
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.35 kOhms
  • Termination: PC pin
  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Homepage: www.te.com
