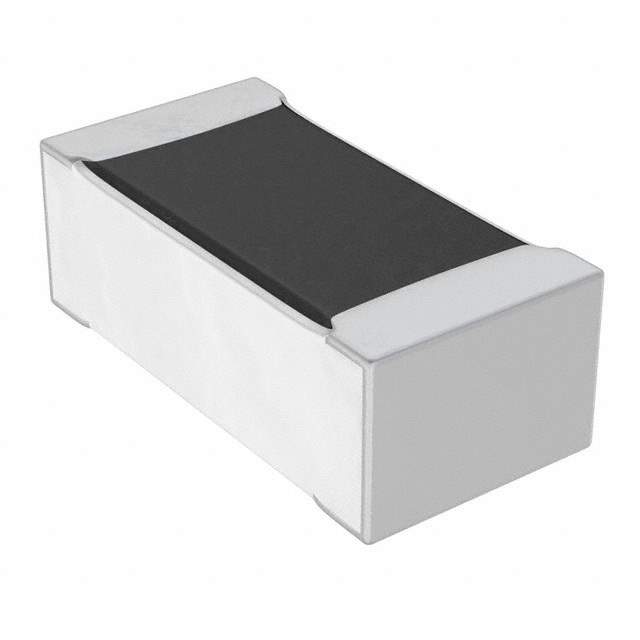

CPF0402B100RE1 Real Image
Same model may have multiple batches, images only for reference.

CPF0402B100RE1

Part No CPF0402B100RE1
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 100 OHM 0.1% 1/16W 0402  /  100 Ohms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CPF, Neohm
Package Tape & Reel
Resistance 100 Ohms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.014" (0.35mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names A102575TR,A102575DKR,2-1879208-5-ND,A102575CT,2-1879208-5,218792085
Standard Package 1,000
Win Source Part Number 1035780-CPF0402B100RE1
Ultra Librarian 3D Model Ultra Librarian CPF0402B100RE1 CAD Model

Description

The CPF0402B100RE1 is a thin film chip resistor from the CPF series of Neohm.

  • Series: CPF
  • Resistance: 100 Ohms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.063W or 1/16W
  • Terminations: 2
  • Package/Case: 0402 (1005 Metric)
  • Supplier Device Package: 0402
  • Operating Temperature Range: -55°C to 155°C
  • Packaging: Tape and Reel
  • Quantity: 1000 units
  • Alternative Parts: ERA-2AEB101X, RT0402BRD07100RL, TNPW0402100RBEED, MCS0402MD1000BE100, CPF-A-0402B100RE1, RN731ETTP1000B25, AT0402BRD07100RL2-1879208-5, and 2-1879208-5
