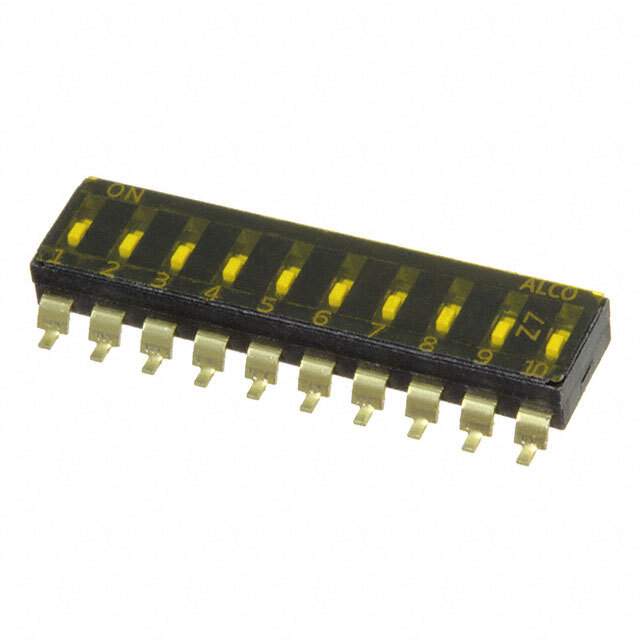

EDS10SGRSTU04Q Real Image
Same model may have multiple batches, images only for reference.

EDS10SGRSTU04Q

Part No EDS10SGRSTU04Q
Manufacturer TE Connectivity
Catalog DIP Switches
Description END STACK DIP 10P G RECESS SEAL / Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series EDS
Package Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.134" (3.40mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm) , Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyamide (PA) , Nylon
Length 0.996" (25.30mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number EDS10
Standard Package 19
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1339040-EDS10SGRSTU04Q
Ultra Librarian 3D Model Ultra Librarian EDS10SGRSTU04Q CAD Model

Description

The EDS10SGRSTU04Q is a 10-position DIP switch from TE Connectivity ALCOSWITCH Switches.

  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Package: Tube
  • Contact Material: Copper Alloy
  • Voltage Rating: 24VDC
  • Height Above Board: 0.134" (3.40mm)
  • Length: 0.996" (25.30mm)
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Electrical and Mechanical Life: 2,000 cycles
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Mounting: Surface Mount
  • Temperature Range: -20°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 25mA
  • REACH: Vendor Undefined
  • HTSUS: 8536.50.9065
