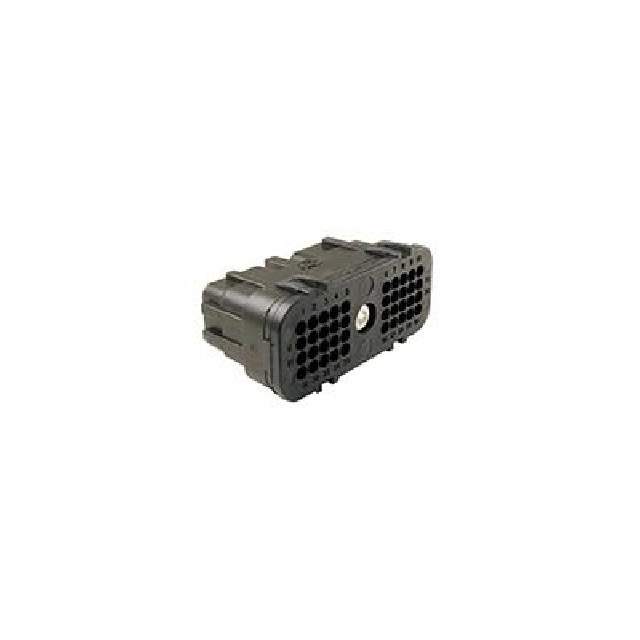

DRC26-40SB-L011 Real Image
Same model may have multiple batches, images only for reference.

DRC26-40SB-L011

Part No DRC26-40SB-L011
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG HSG 40POS  /  40 Rectangular Connectors - Housings Plug Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series DRC
Package Bulk
Connector Type Plug
Contact Type Female Socket
Number of Positions 40
Number of Rows 4
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Screw Lock
Color Black
Features Cap (Cover), Dust, IP68, Reduced Wire Seals
Note Contacts Not Included
Base Product Number DRC26
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.8000
Other Names DRC26-40SB-L011-ND,1734-DRC26-40SB-L011,-DRC26-40SB-L011-SI
Standard Package 1
Win Source Part Number 1158773-DRC26-40SB-L011
Ultra Librarian 3D Model Ultra Librarian DRC26-40SB-L011 CAD Model

Description

The TE Connectivity Deutsch Connectors DRC26-40SB-L011 is a rectangular connector housing from the DRC series.

  • Series: DRC
  • Positions: 40
  • Color: Black
  • Connector Type: Plug
  • Contact Type: Female Socket
  • Fastening Type: Screw Lock
  • IP Rating: IP68
  • Packaging: Bulk
  • Contact Termination: Crimp
  • Contacts Included: No
  • Mounting: Free Hanging (In-Line)
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • REACH: Affected
  • HTSUS: 8536.69.8000
