EV500-4B TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

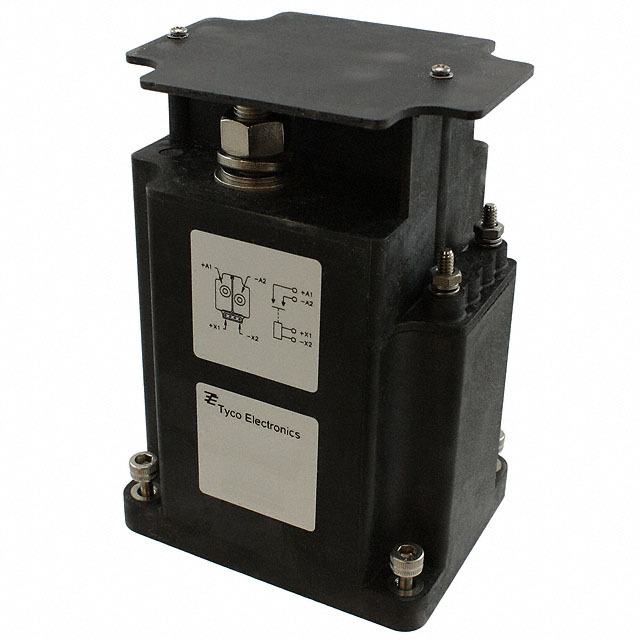

EV500-4B

Part No EV500-4B
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 750A 24V
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 750 A
Switching Voltage 1800VDC - Max
Coil Type Non Latching
Termination Style Stud
Seal Rating Sealed - Hermetically
Must Operate Voltage 19.7 VDC
Must Release Voltage 4 VDC
Operate Time 40 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Relay Type General Purpose
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1548930-EV500-4B
Ultra Librarian 3D Model Ultra Librarian EV500-4B CAD Model
