Same model may have multiple batches, images only for reference.

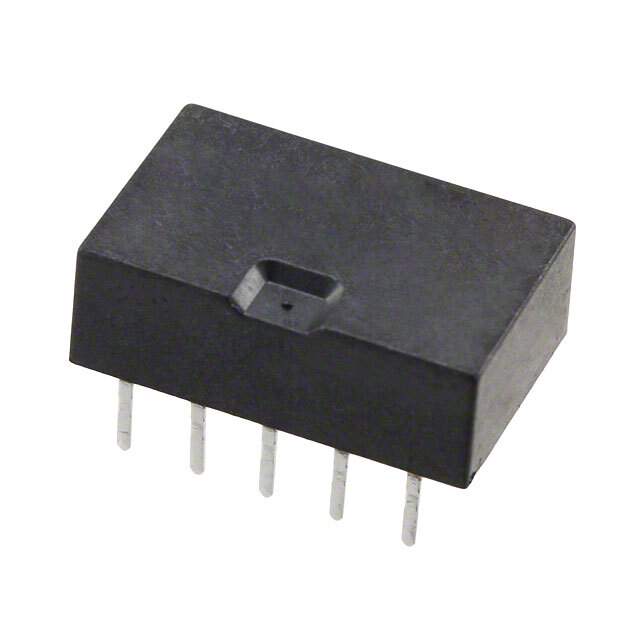

FP2 D3009 Real Image
Same model may have multiple batches, images only for reference.

FP2 D3009

Part No FP2 D3009
Manufacturer TE Connectivity
Catalog OEM Parts (F - I)
Description Relay FP2 Series 5VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Power 140 mW
Coil Resistance 178 Ω
Coil Voltage (DC) 5 V
Contact Material Gold
Contact Plating Gold
Depth 6 mm
Height 5.65 mm
Length 10 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -55 °C
Mount PCB
Number of Pins 10
RoHS Compliant
Switching Voltage 250 V
Termination Through Hole
Throw Configuration DPDT
Weight 2 g
Width 9.02 mm
Win Source Part Number 997815-FP2 D3009
Categories OEM Parts(F-I)
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian FP2 D3009 CAD Model

Description

The FP2 D3009 is a through-hole switch manufactured by TE Connectivity.

  • Supply and Demand Status: Shortage
  • Coil Resistance: 178 Ω
  • Switching Voltage: 250 V
  • Coil Power: 140 mW
  • Mounting Type: PCB
  • RoHS: Compliant
