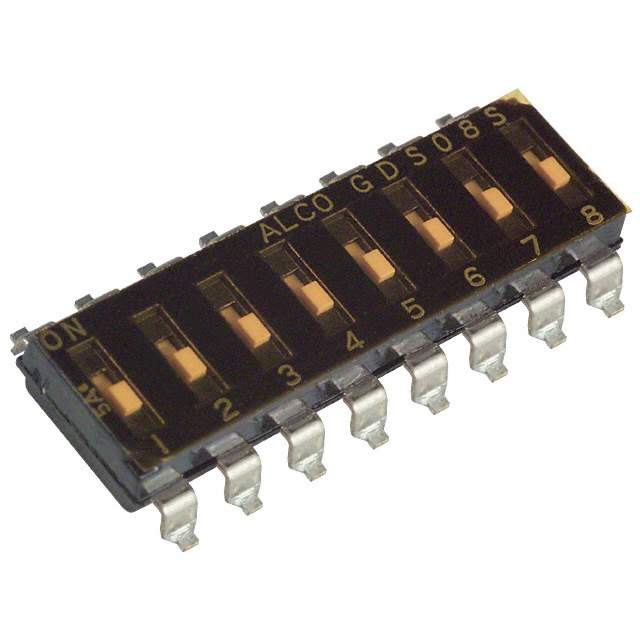

GDS08S04 Real Image
Same model may have multiple batches, images only for reference.

GDS08S04

Part No GDS08S04
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.114" (2.90mm)
Mounting Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.794" (20.17mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number GDS08
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number 2266-1-1825006-5,GDS08S04,1-1825006-5,450-1343
Standard Package 20
Win Source Part Number 1323841-GDS08S04
Ultra Librarian 3D Model Ultra Librarian GDS08S04 CAD Model

Description

The GDS08S04 is a surface mount DIP switch with eight positions.

  • Pitch: 0.100 inches
  • Termination Style: Gull Wing
  • Manufacturer: TE Connectivity ALCOSWITCH Switches
  • Designed for: Single-Pole, Single-Throw Applications
  • Contact Finish: Gold
  • Material: Copper Alloy
  • Voltage Rating: 24VDC
  • Washable: Yes
  • Temperature Range: -30°C to 85°C
  • ROHS: ROHS3 Compliant
