Same model may have multiple batches, images only for reference.

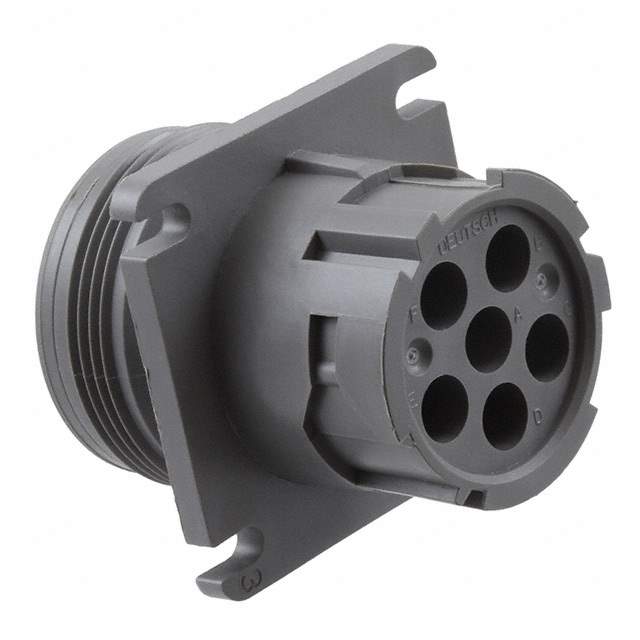

HD10-6-12P Real Image
Same model may have multiple batches, images only for reference.

HD10-6-12P

Part No HD10-6-12P
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN RCPT HSNG MALE 6POS PNL MNT  /  6 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HD10
Package Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 6
Shell Size - Insert 6-12
Contact Type Crimp
Contact Size 12
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Plastic
Housing Color Gray
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Shielding Unshielded
Note Contacts Not Included
Insert Material Plastic
Contact Shape Circular
Temperature Range - Operating -40°C ~ 125°C
Base Product Number HD10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Names 1734-1310,-HD10-6-12P-SI
Standard Package 1
Win Source Part Number 1054538-HD10-6-12P
Ultra Librarian 3D Model Ultra Librarian HD10-6-12P CAD Model

Description

TE Connectivity Deutsch Connectors introduces a circular connector housing with a bayonet lock and a keyed orientation.

  • Design: Designed for male pins
  • Positions: 6
  • Contact Size: 12
  • Ingress Protection: IP68, dust tight and waterproof
  • Shielding: unshielded
  • Flammability Rating: UL94 V-1
  • Operating Temperature: -40°C to 125°C
  • Application: panel mount applications for computers, communications, and industrial equipment
  • Series: HD10
  • Packaging: bulk
