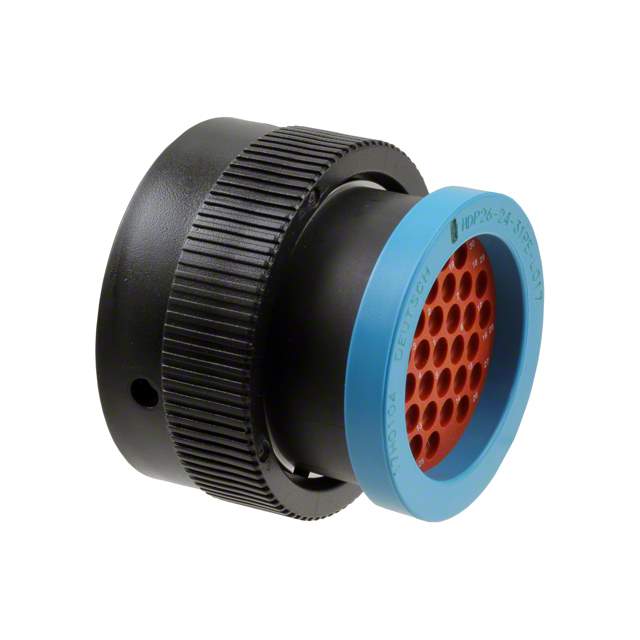

HDP26-24-31PE-L017 Real Image
Same model may have multiple batches, images only for reference.

HDP26-24-31PE-L017

Part No HDP26-24-31PE-L017
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN PLUG HSNG MALE 31POS INLINE / 31 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Ring Adapter
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity Deutsch Connectors
Packaging Bulk
Connector Type Plug Housing
Type For Male Pins
Number of Positions 31
Shell Size - Insert 24-31
Contact Type Crimp
Contact Size 16
Mounting Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black, Blue
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Coupling Nut, Ring Adapter
Shielding Unshielded
Note Contacts Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP26
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number 2266-HDP26-24-31PE-L017,-HDP26-24-31PE-L017-SI,1734-1512,HDP26-24-31PE-L017-ND
Standard Package 40
Win Source Part Number 1334496-HDP26-24-31PE-L017
Ultra Librarian 3D Model Ultra Librarian HDP26-24-31PE-L017 CAD Model

Description

The HDP26-24-31PE-L017 is a circular connector housing from TE Connectivity Deutsch Connectors.

  • For: Male Pins
  • Positions: 31
  • Features: Coupling Nut and Ring Adapter
  • Connector Type: Plug Housing
  • Contact Type: Crimp
  • Fastening Type: Bayonet Lock
  • Contact Size: 16
  • Ingress Protection: IP68 (dust tight and waterproof)
  • Shielding: Unshielded
  • Material Flammability Rating: UL94 V-1
  • Keyed: Yes
  • Housing Color: Black and Blue
  • Standard Package: 40
  • Mounting: Free In-Line
  • Shell Size Insert: 24-31
  • Temperature Range: -55°C to 125°C
  • Shell Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Insert Material: Polyetherimide (PEI)
  • Base Product Number: HDP26
