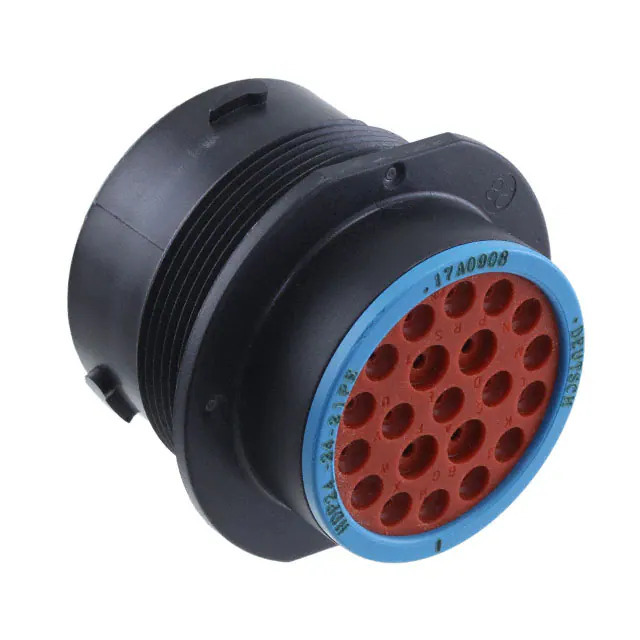

HDP24-24-21PE TE Connectivity
Same model may have multiple batches, images only for reference.

HDP24-24-21PE

Part No HDP24-24-21PE
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN RCPT HSNG MALE 21POS PNL MT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Product Status Active
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 21
Shell Size - Insert 24-21
Shell Size, MIL -
Contact Type Crimp
Contact Size 12 (4), 16 (17)
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Finish -
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Dust Cap
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Includes -
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP24
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1366115-HDP24-24-21PE
Ultra Librarian 3D Model Ultra Librarian HDP24-24-21PE CAD Model

Description

The TE Connectivity Deutsch Connectors HDP20 series is a circular connector housing for crimp contacts from TE Connectivity Deutsch Connectors.

  • Number of Positions: 21
  • Gender: Male Pins
  • Fastening Type: Bayonet Lock
  • Operating Temperature: -55°C to 125°C
  • Ingress Protection: IP68
  • Features: Dust Tight and Waterproof
  • Housing Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Housing Color: Black
  • Product Status: Active
  • MSL: No MSL Level
  • Packaging: Bulk
  • REACH: Unaffected
  • Additional Feature: Dust Cap
