Same model may have multiple batches, images only for reference.

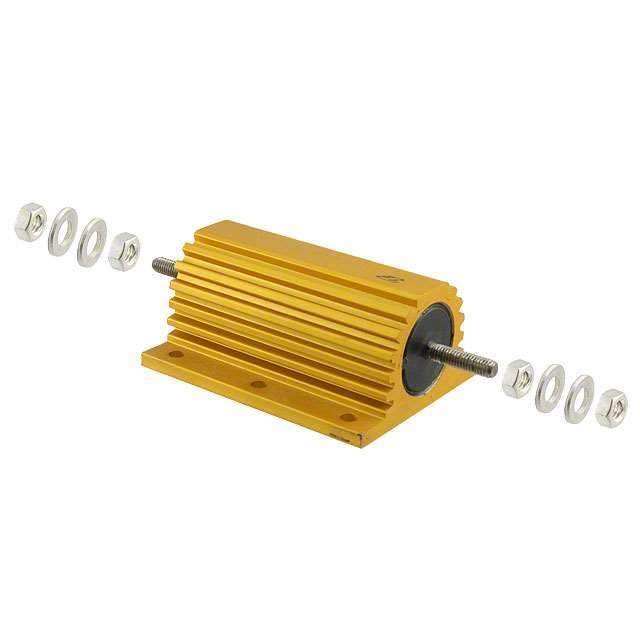

HSC20056RJ Real Image
Same model may have multiple batches, images only for reference.

HSC20056RJ

Part No HSC20056RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 56 OHM 5% 200W / 56 Ohms ±5% 200W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Tray
Resistance 56 Ohms
Tolerance ±5%
Power (Watts) 200W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 3.543" L x 2.874" W (90.00mm x 73.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Lead Style Terminal Screw Type
Package / Case Axial, Box
Base Product Number HSC200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names HSC20056RJ-ND,2-1630019-4,A138913,2-1630019-4-ND
Standard Package 2
Win Source Part Number 1006185-HSC20056RJ
Ultra Librarian 3D Model Ultra Librarian HSC20056RJ CAD Model

Description

The TE Connectivity Passive Product HSC20056RJ is a chassis mount resistor that has a wirewound composition.

  • Mounting: Chassis Mount
  • Composition: Wirewound
  • Resistance: 56 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Power: 200W
  • Packaging: Tray
  • Mounting Feature: Flanges
  • Coating/Housing Type: Aluminum
  • Package/Case: Axial, Box
  • Dimension: 3.543" L x 2.874" W (90.00mm x 73.00mm)
  • Height: 1.654" (42.00mm)
  • Temperature Range: -55°C to 200°C
  • Standard Package: 2
