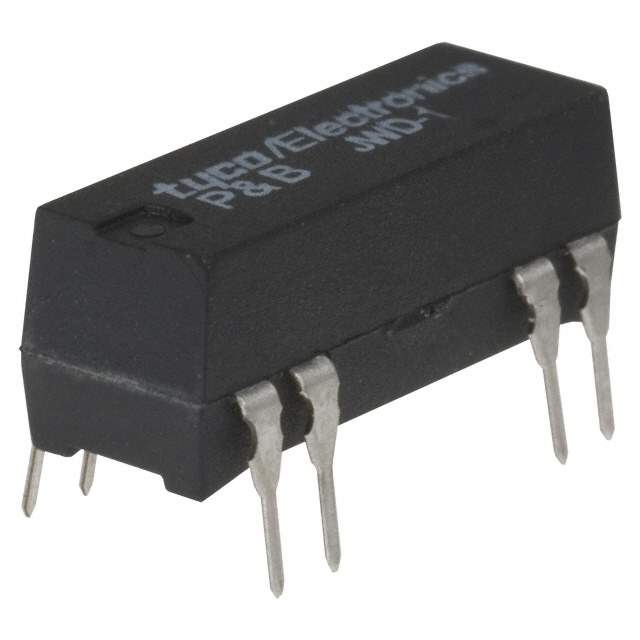

JWD-107-1 Real Image
Same model may have multiple batches, images only for reference.

JWD-107-1

Part No JWD-107-1
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY REED SPST 500MA 5V /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Reed Relays
Mfr TE Connectivity Potter & Brumfield Relays
Series JWD
Package Tray
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 100VDC - Max
Coil Current 10 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.8 VDC
Must Release Voltage 0.5 VDC
Operate Time 1.5 ms
Release Time 0.5 ms
Temperature Range - Operating -35°C ~ 85°C
Contact Material Ruthenium (Ru)
Coil Resistance 500 Ohms
Base Product Number JWD
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Other Names JWD1071,1393771-3,PB692
Standard Package 25
Win Source Part Number 1054540-JWD-107-1
Ultra Librarian 3D Model Ultra Librarian JWD-107-1 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays JWD-107-1 is a SPST-NO (1 Form A) reed relay that comes with a coil voltage of 5VDC and a coil resistance of 500 Ohms.

  • Coil Voltage: 5VDC
  • Coil Resistance: 500 Ohms
  • Contact Rating: 500 mA
  • Switching Voltage: 100VDC - Max
