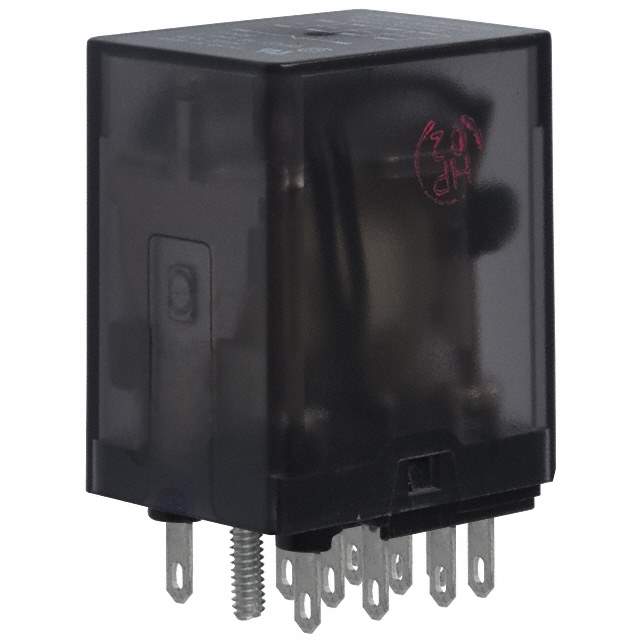

KHAU-17A11-120 Real Image
Same model may have multiple batches, images only for reference.

KHAU-17A11-120

Part No KHAU-17A11-120
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 3A 120V / General Purpose Relay 4PDT (4 Form C) 120VAC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KHA
Package Bulk
Mounting Type Socketable
Coil Voltage 120VAC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 3 A
Switching Voltage 240VAC - Max
Coil Current 11 mA
Coil Type Non Latching
Termination Style Plug In
Coil Insulation Class B
Must Operate Voltage 102 VAC
Operate Time 13 ms
Release Time 6 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver (Ag)
Relay Type General Purpose
Coil Resistance 3.9 kOhms
Base Product Number KHAU
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0050
Other Names 2-1393122-0,KHAU17A11120,-KHAU-17A11-120=KH-SI,-KHAU-17A11-120=KH-SI-ND,KHAU-17A11-120BULK,-KHAU-17A11-120-SI,PB140,PB140-NDR
Standard Package 25
Win Source Part Number 1164335-KHAU-17A11-120
Ultra Librarian 3D Model Ultra Librarian KHAU-17A11-120 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays KHAU-17A11-120 is a 4PDT (4 Form C) power relay that has a coil voltage of 120VAC and a contact rating of 3A.

  • Relay Type: Power Relay
  • Contact Configuration: 4PDT (4 Form C)
  • Coil Voltage: 120VAC
  • Contact Rating: 3A
  • Supply and Demand Status: Balanced
  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Product Name: KHAU-17A11-120
