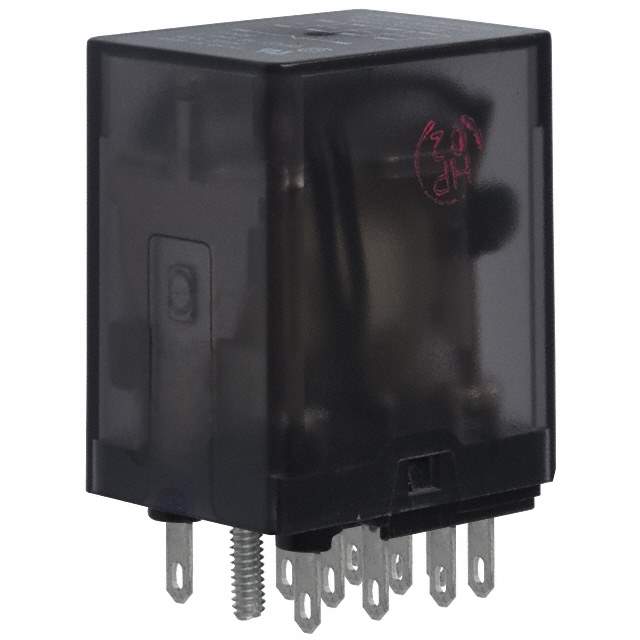

KHAU-17A12-120 Real Image
Same model may have multiple batches, images only for reference.

KHAU-17A12-120

Part No KHAU-17A12-120
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 120V / General Purpose Relay 4PDT (4 Form C) 120VAC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KHA
Package Tray
Mounting Type Socketable
Coil Voltage 120VAC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5 A
Switching Voltage 240VAC - Max
Coil Current 11 mA
Coil Type Non Latching
Termination Style Plug In
Coil Insulation Class B
Must Operate Voltage 102 VAC
Operate Time 13 ms
Release Time 6 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 3.9 kOhms
Base Product Number KHAU-1
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0050
Other Names PB456-NDR,KHAU17A12120,PB456,2-1393122-8,-KHAU-17A12-120-SI
Standard Package 25
Win Source Part Number 985447-KHAU-17A12-120
Ultra Librarian 3D Model Ultra Librarian KHAU-17A12-120 CAD Model

Description

The KHA series 4PDT (4 Form C) plug-in power relay is designed to switch up to 5A of current @ 240VAC. TE Connectivity Potter & Brumfield Relays

  • Contact Material: silver cadmium oxide (AgCdO)
  • Coil Voltage: 120VAC
  • Coil Resistance: 3.9 kOhms
  • Coil Current: 11 mA
  • Operate Time: 13 ms
  • Release Time: 6 ms
  • Latching: non-latching
  • Package: standard package of 25
  • Temperature Range: -45°C ~ 70°C
  • Mounting: socketable
  • RoHS: non-compliant
  • REACH: affected by REACH
